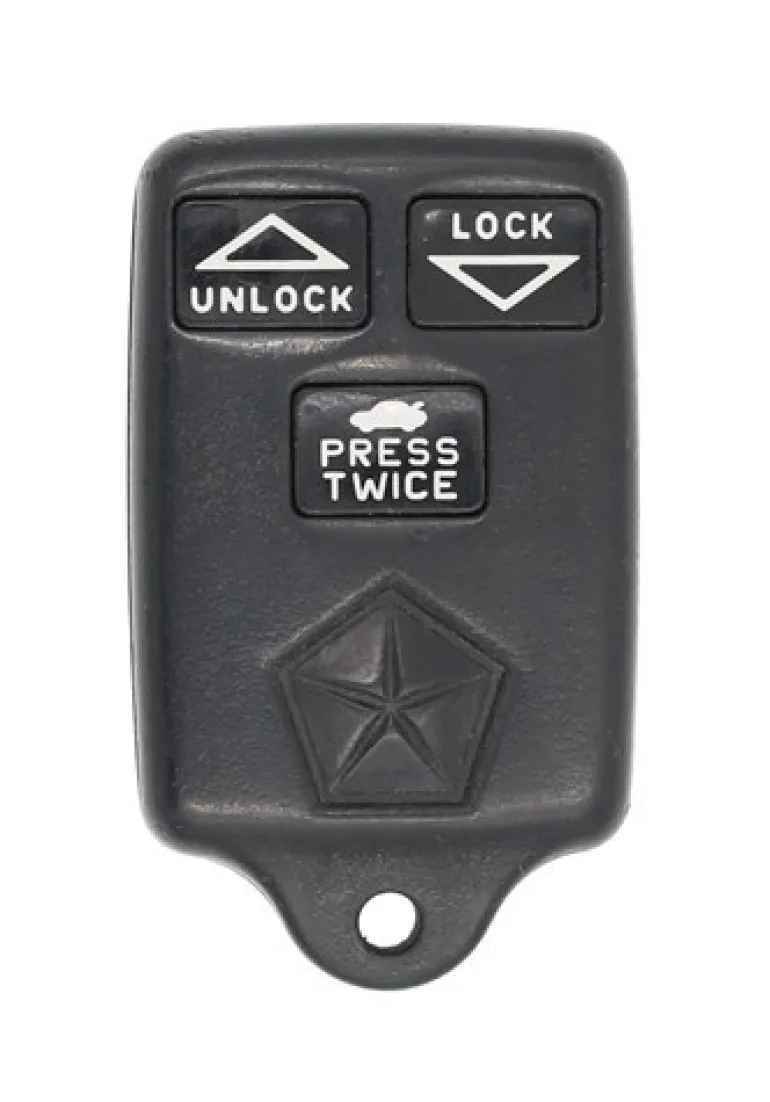

04688527 OEM 3 Button Key Fob

This is a Factory OEM (Original Equipment Manufacturer) Chrysler | Dodge 3 Button keyless entry remote, aka “key fob”.

Chrysler | Dodge

• 1993-1997 Chrysler Concorde
• 1991-1993 Chrysler Imperial
• 1994-1997 Chrysler LHS
• 1993-1997 Dodge Intrepid
• 1995-1997 Plymouth Grand Voyager
• 1995-1997 Plymouth Voyager
• 1991-1997 Chrysler New Yorker
• 1994-1995 Chrysler Town & Country
• 1994-1995 Dodge Caravan
• 1994-1995 Dodge Grand Caravan

Programming Procedures

NOTE:Dodge Vision vehicles, as well as some Plymouth Voyager and Chrysler New Yorker vehicles, must be programmed by a professional locksmith or dealership.

Programming for 94-95 Chrysler Concorde and LHS; 93-96 Chrysler New Yorker; 93-96 Dodge Intrepid
Obtain all remote transmitters for this vehicle.

1. Remove the middle vent bezel from the center of the dashboard. Locate the 6 pin traction control connector behind the vent. It will be black in color. Connector should be connected to the vent bezel or the traction control switch, if connected to the traction control switch you must unplug it.
2. Insert key into ignition and turn ignition switch to the ON position.
3. Using a jumper wire or a paper clip bent in the shape of a “U” jump pin 1 to pin 4. Ensure there are metal contacts or pins in cavities 1 and 4. When done properly the doors will automatically lock and then unlock to show that vehicle is in programming mode.
4. Press any button on the first remote to be programmed. Locks will cycle again to indicate vehicle recognized remote. If programming a second remote press any button on second remote to be programmed, locks will cycle again to indicate that second remote was recognized.
5. Programming is now complete, turn ignition to OFF position, remove jumper wire, and test remotes to ensure proper programming.

Programming for 96-97 Chrysler Concorde and LHS; 97 Dodge Intrepid
Obtain all remote transmitters for this vehicle.

1. Insert key into ignition and turn ignition switch to the ON position. (Turn as far as you can without cranking the engine)
2. Locate the Data Link Connector (DLC). It will be under the dash on the drivers side. Using a suitable jumper wire, jump pin 1 to pin 4. Ensure that there are metal connector ends in the cavities that are referenced in this procedure. Once the jumper wire is installed it needs to remain there throughout this process until instructed to remove.
3. Press any button on the first remote to be programmed. If the signal is recognized the vehicle will Lock then Unlock the doors automatically.
4. Repeat step 3 for any additional remotes to be programmed. The doors will again Lock then Unlock automatically after each successful remote programming.
5. Remove jumper wire and remove key from ignition as programming is complete. Test each remote to ensure proper programming.

Programming for 94-95 Chrysler Town & Country; 94-95 Dodge Caravan and Grand Caravan; 93-95 Plymouth Voyager and Grand Voyager
Obtain all remote transmitters for this vehicle.

1. Open the glove box and lower down by releasing catch tabs.
2. Insert key into ignition and turn ignition switch to the ON position. (Just shy of cranking the engine)
3. Find the program connector behind the glove box and jump to ground. This means to take a wire and contact the metal in the connector to a non-painted metal surface that is a suitable ground. When done properly the door locks will Lock and then Unlock automatically. The vehicle is now in programming mode.
4. Press any button on the remote. The doors will again Lock and Unlock automatically when the signal has been received from the remote and programmed successfully. Repeat this step for each remote that needs to be programmed to the vehicle.
5. Remove the jumper wire to ground and the programming procedure is now done. Test each remote to ensure it functions.

Programming for 96-97 Plymouth Voyager and Grand Voyager
NOTE: You must have a working remote to program another remote. Vehicles may use one of two procedures listed below. If you do not currently have a working remote, programming must be completed by a professional locksmith or dealership.

Programming Procedure #1
Obtain all remote transmitters for this vehicle.

1. Put key in ignition and turn ignition switch to ON position (as far as you can turn key without cranking engine).
2. Press and hold UNLOCK on a currently functioning remote for 4 to 10 seconds.
3. While holding the UNLOCK button during the 4 to 10 second period, press the panic button for one second and release both buttons at the same time. A chime should sound within three seconds to indicate the vehicle has entered programming mode.
4. Press any button on the remote used in step 3. You should hear an audible tone indicating that remote has been re-programmed. This step must be done within 30 seconds of hearing first chime in step 3.
5. Within 30 seconds of completingstep 4, press any button on the next remote. Repeat step 5 for all additional remotes including working remotes.
6. Programming is now complete. Turn ignition off and test remotes to ensure proper programming.

Programming Procedure #2
Obtain all remote transmitters for this vehicle.

1. Put key in ignition and turn ignition switch to ON position (as far as you can turn key without cranking engine).
2. Press and hold UNLOCK on a currently functioning remote for 4 to 10 seconds.
3. While holding the UNLOCK button during the 4 to 10 second period, press the panic button for one second and release both buttons at the same time. A chime should sound within three seconds to indicate the vehicle has entered programming mode.
4. Press the LOCK and UNLOCK buttons simultaneously on the same remote used in step 3. then release. You should hear an audible tone indicating that the remote was recognized. Once tone is heard press and release the UNLOCK button on that remote. A chime should sound indicating that the remote has been programmed. This must be done within 30 seconds of step 3.
5. Within 30 seconds of completing step 4, press the LOCK and UNLOCK button on the next remote then release. You should hear an audible tone indicating that the remote was recognized. Once tone is heard press and release the UNLOCK button on that remote. A chime should sound indicating that the remote has been programmed. Repeat step 5 for all additional remotes including working remotes.
6. Programming is now complete. Turn ignition off and test remotes to ensure proper programming.

OEM Key Fobs:

We are proud to offer true OEM key fobs direct to you at up to 80% off dealer prices. There is a catch though, so here it goes:

You need to know the only way to get a NEW OEM key fob is to go to a dealer or authorized reseller of OEM parts, and you will pay dealer prices if you do this and spend hundreds of dollars.

Our Products:

The key fob you are going to purchase from us is used or as we like to say “previously loved”. We recycle OEM key fobs and put them through a rigorous refurbishing process so we can guarantee our products and offer them at a reasonable price along with saving the environment. Oh, and we are not robbing you of your hard earned dollars like the stealership does. So if you are good with all of this what are you waiting for? Make your life easier, order a key fob from us and save the world!

04688527 Factory OEM KEY FOB Keyless Entry Remote Alarm Replace
