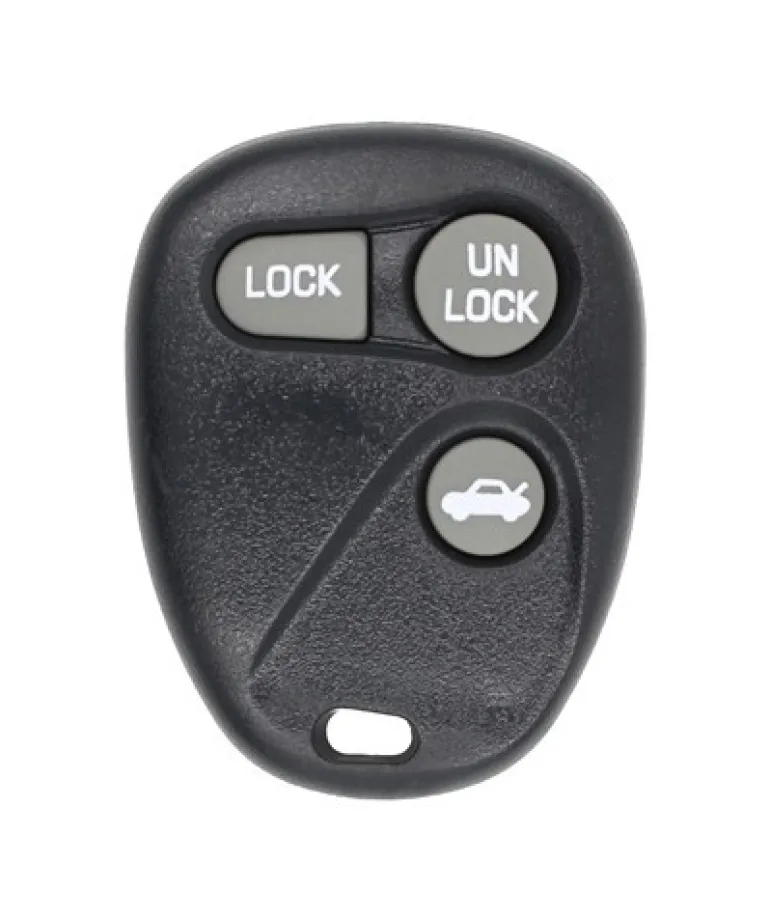

Buick Riviera OEM 3 Button Key Fob with Trunk Button

This is a Factory OEM (Original Equipment Manufacturer) Buick Riviera 3 Button keyless entry remote, aka “key fob”.

Factory OEM electronics in a new aftermarket case.

1997-1998 Buick Riviera

1. Locate the Data Link Port (shown above). It is located under the Driver’s side dash. Identify ports eight (8) and four (4). Note that the port is wider on the top row and contains ports one (1) through eight (8). The bottom row contains ports nine (9) through sixteen (16). Be sure there are metal pins inside ports 8 and 4. The above diagram is for your reference since the numbers are not on the connector ports.
2. Connect port eight (8) to port (4) with a suitable jumper wire. Any short piece of conductive wire will work (i.e. – a paper clip). You will leave the jumper wire connected throughout the programming procedure. The vehicle will respond by locking and unlocking the doors to indicate that the vehicle has entered programming mode.
3. Press and hold both the LOCK and UNLOCK buttons together on the first remote to be programmed. After about 15 seconds, the vehicle will respond by locking and unlocking the doors. Release the buttons on the remote.
4. Within one minute, repeat Step 4 on all additional remotes, including working ones, to be programmed to the vehicle.
5. Remove the jumper wire connected to the Data Link Port.
6. Test all remotes. Programming is now complete.

OEM Key Fobs:

We are proud to offer true OEM key fobs direct to you at up to 80% off dealer prices. There is a catch though, so here it goes:

You need to know the only way to get a NEW OEM key fob is to go to a dealer or authorized reseller of OEM parts, and you will pay dealer prices if you do this and spend hundreds of dollars.

Our Products:

The key fob you are going to purchase from us is used or as we like to say “previously loved”. We recycle OEM key fobs and put them through a rigorous refurbishing process so we can guarantee our products and offer them at a reasonable price along with saving the environment. Oh, and we are not robbing you of your hard earned dollars like the stealership does. So if you are good with all of this what are you waiting for? Make your life easier, order a key fob from us and save the world!

Buick Riviera OEM 3 Button Key Fob with Trunk Button
