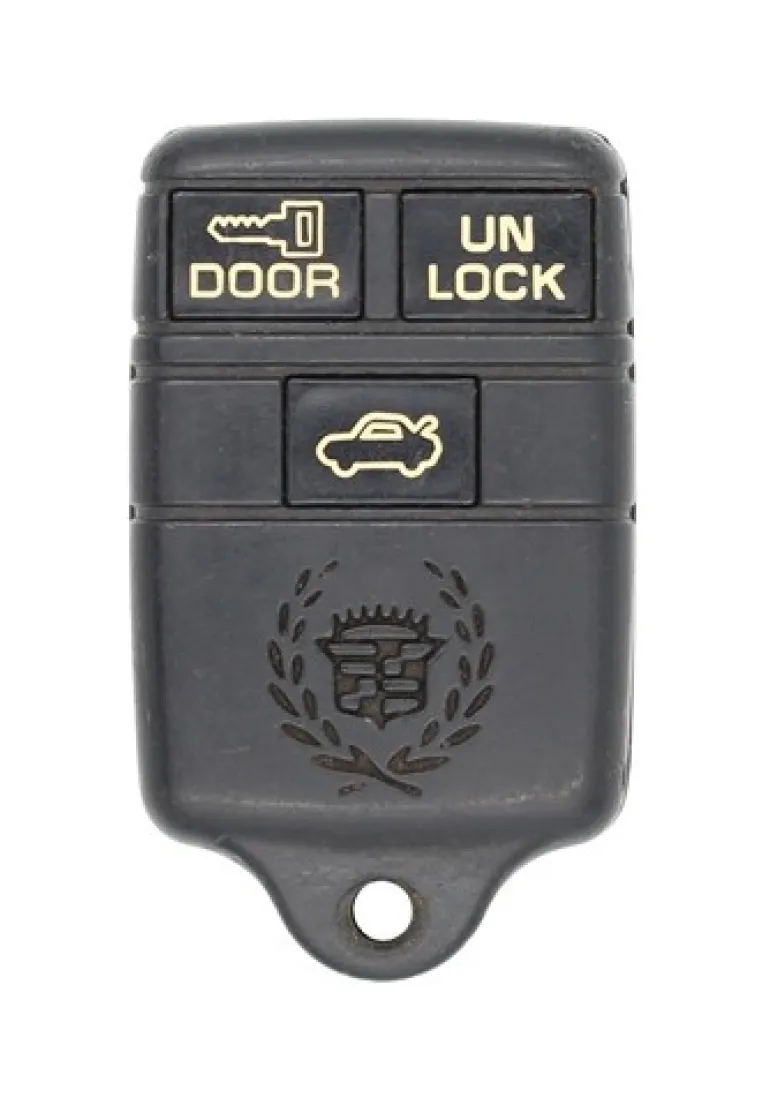

Cadillac DeVille OEM 3 Button Key Fob

This is a Factory OEM (Original Equipment Manufacturer) Cadillac DeVille 3 Button keyless entry remote, aka “key fob”.

1991-1993 Cadillac DeVille

Obtain all remote transmitters for this vehicle.

1. Locate the Data Link Connector (DLC) underneath the driver’s side dashboard.
Please refer to the diagram above to identify the proper pins, the letters will not be
on the connector. They are for reference on diagram only.

2. Connect cavity G with a ground using a fused jumper wire.
Your vehicle will respond by locking and unlocking the door locks within 2 seconds.

3. Press any button on first remote to be programmed.
Locks will lock and unlock verifying remote was programmed.

4. Press any button on second remote to be programmed if applicable.
Locks will lock and unlock to verify remote was programmed.

5. Remove jumper wire and test remote(s).

Obtain all remote transmitters for this vehicle.

1. Locate the Data Link Connector (DLC) underneath the driver’s side dashboard. Please refer to the diagram above to determine the G and A cavity. The letters will not appear on the connector. They are on the diagram for ease of reference.

2. Connect cavity G with cavity A using a fused jumper wire. Your vehicle will respond by locking and unlocking the door locks within 2 seconds.

3. Press any button 3 times in successtion on first remote to be programmed. Locks will lock and unlock verifying remote was programmed.

4. Press any button 3 times in succession on second remote to be programmed if applicable. Locks will lock and unlock to verify remote was programmed.

5. Remove jumper wire and test remote(s)

1. Locate the Data Link Connector (DLC) underneath the driver’s side dashboard.
Please refer to the diagram above to determine the G and A cavity. The
letters will not appear on the connector. They are on the diagram for
ease of reference.

2. Connect cavity G with cavity A using a fused jumper wire.
Your vehicle will respond by locking and unlocking the door locks within 2 seconds.

3. Press the UNLOCK button once on first remote to be programmed.
Locks will lock and unlock verifying remote was programmed.

4. Press the UNLOCK button on second remote to be programmed if applicable.
Locks will lock and unlock to verify remote was programmed.

5. Remove jumper wire and test remote(s).

OEM Key Fobs:

We are proud to offer true OEM key fobs direct to you at up to 80% off dealer prices. There is a catch though, so here it goes:

You need to know the only way to get a NEW OEM key fob is to go to a dealer or authorized reseller of OEM parts, and you will pay dealer prices if you do this and spend hundreds of dollars.

Our Products:

The key fob you are going to purchase from us is used or as we like to say “previously loved”. We recycle OEM key fobs and put them through a rigorous refurbishing process so we can guarantee our products and offer them at a reasonable price along with saving the environment. Oh, and we are not robbing you of your hard earned dollars like the stealership does. So if you are good with all of this what are you waiting for? Make your life easier, order a key fob from us and save the world!
