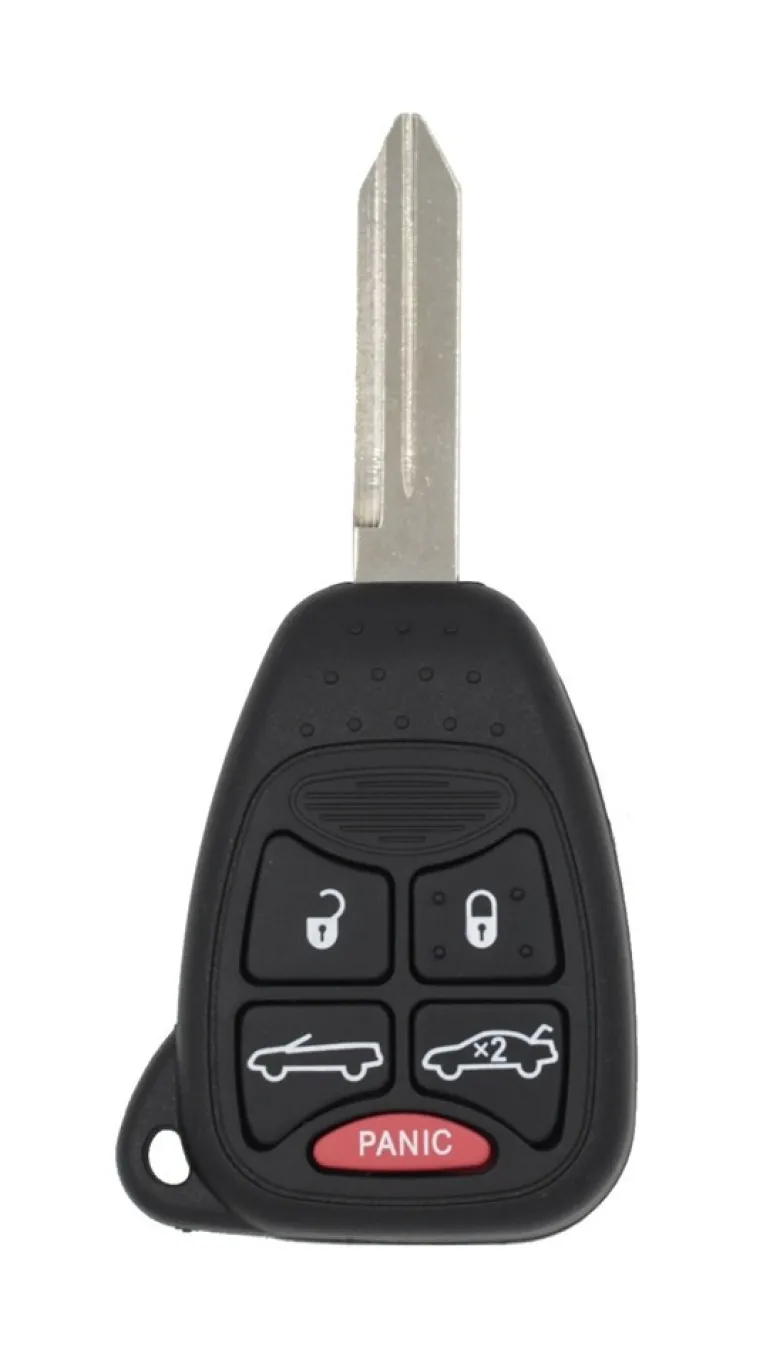

Chrysler 04589342 AC OEM 5 Button Key Fob

This is a Factory OEM (Original Equipment Manufacturer) Chrysler 5 Button keyless entry remote, aka “key fob”.

Unlocked, ready to program OEM electronics in a new aftermarket case with an uncut key.

Chrysler

• 2007-2014 Chrysler Sebring Convertible
• 2011-2014 Chrysler 200 Convertible

Note: Most 2010 and newer vehicles must be programmed by a professional automotive locksmith or dealership.

This programming procedure requires you to already have at least 1 working remote transmitter for your Dodge/Chrysler/Jeep. If you do not have any remote transmitters, you must get this new one programmed by a qualified locksmith or dealership. Please review the procedure before attempting programming. There are 2 possible programming procedures available. Please try procedure 1 first. If that does not work, use procedure 2.

Programming procedure #1.
*Obtain all remote transmitters for this vehicle. Sit in vehicle with all doors closed and the driver’s seatbelt on. Make sure no one else is in the vehicle.

1. Put key in ignition and turn ignition switch to ON position (last stop before cranking the engine).
2. Press and hold UNLOCK on a currently functioning remote for 4 to 10 seconds.
3. While holding the UNLOCK button during the 4 to 10 second period, press the panic button for one second and release both buttons at the same time. A chime should sound within three seconds to indicate the vehicle has entered programming mode.
4. Press the Unlock button on the remote used in step 3. You should hear an audible tone indicating that remote has been re-programmed. This step must be done within 30 seconds of hearing first chime in step 3.
5. Within 30 seconds – Press the Unlock button on the next remote.
-Repeat step 5. for all additional remotes including working remotes
6. Programming is now complete. Turn ignition off and test remotes to ensure proper programming.

Programming Procedure #2
*Obtain all remote transmitters for this vehicle. Sit in vehicle with all doors closed and the driver’s seatbelt on. Make sure no one else is in the vehicle.

1. Put key in ignition and turn ignition switch to ON position (as far as you can turn key without cranking engine).
2. Press and hold UNLOCK on a currently functioning remote for 4 to 10 seconds.
3. While holding the UNLOCK button during the 4 to 10 second period, press the panic button for one second and release both buttons at the same time. A chime should sound within three seconds to indicate the vehicle has entered programming mode.
4. Press the LOCK and UNLOCK buttons simultaneously on the same remote used in step 3. then release. You should hear an audible tone indicating that the remote was recognized. Once tone is heard press and release the UNLOCK button on that remote. A chime should sound indicating that the remote has been programmed. This must be done within 30 seconds of step 3.
5. Within 30 seconds – Press the LOCK and UNLOCK button on the next remote then release. You should hear an audible tone indicating that the remote was recognized. Once tone is heard press and release the UNLOCK button on that remote. A chime should sound indicating that the remote has been programmed. Repeat step 5. for all additional remotes including working remotes.
6. Programming is now complete. Turn ignition off and test remotes to ensure proper programming.

OEM Key Fobs:

We are proud to offer true OEM key fobs direct to you at up to 80% off dealer prices. There is a catch though, so here it goes:

You need to know the only way to get a NEW OEM key fob is to go to a dealer or authorized reseller of OEM parts, and you will pay dealer prices if you do this and spend hundreds of dollars.

Our Products:

The key fob you are going to purchase from us is used or as we like to say “previously loved”. We recycle OEM key fobs and put them through a rigorous refurbishing process so we can guarantee our products and offer them at a reasonable price along with saving the environment. Oh, and we are not robbing you of your hard earned dollars like the stealership does. So if you are good with all of this what are you waiting for? Make your life easier, order a key fob from us and save the world!

Chrysler 04589342 AC Factory OEM Key Fob Keyless Entry Remote Alarm Replace
