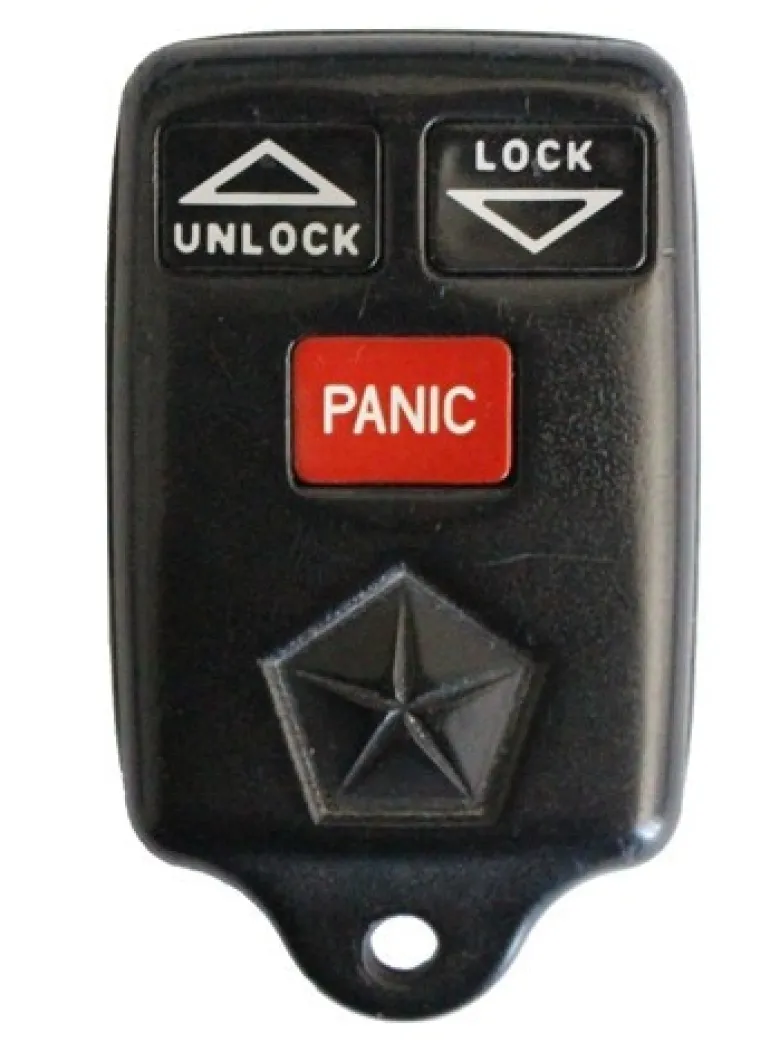

Chrysler, Dodge, Jeep 4686076 OEM 3 Button Key Fob

This is a Factory OEM (Original Equipment Manufacturer) Chrysler | Dodge | Jeep | Plymouth 3 Button keyless entry remote, aka “key fob”.

You will receive one of the listed interchangeable part numbers.

Chrysler | Dodge | Jeep | Plymouth

• 1996-1998 Chrysler Town & Country
• 1996-1998 Dodge Caravan
• 1998 Dodge Dakota
• 1996-1999 Dodge Durango
• 1996-1999 Dodge Grand Caravan
• 1994-1997 Dodge Intrepid
• 1997-1998 Dodge Neon
• 1998-1999 Dodge Ram 1500
• 1998-1999 Dodge Ram 2500
• 1998-1999 Dodge Ram 3500
• 1996-1999 Jeep Grand Cherokee
• 1997-1999 Plymouth Neon
• 1999 Plymouth Prowler
• 1996-1998 Plymouth Voyager

*YOU MUST HAVE A WORKING REMOTE FOR PROCEDURE 1 AND 2 TO WORK. IF YOU DON’T HAVE A WORKING REMOTE THEN YOU MUST HAVE YOUR REMOTE PROGRAMMED BY A DEALER OR LOCKSMITH USING DIAGNOSTIC EQUIPMENT.

*PLEASE READ ENTIRE PROCEDURE BEFORE PERFORMING. SOME VEHICLES MAY USE ONE OF THREE PROCEDURES.

*DURANGOS, DAKOTAS, RAMS, AND CHEROKEES MUST BE PROGRAMMED BY A DEALERSHIP OR LOCKSMITH USING DIAGNOSTIC EQUIPMENT.

Programming procedure #1

Obtain all remote transmitters for this vehicle.

1. Put key in ignition and turn ignition switch to ON position (as far as you can turn key without cranking engine).

2. Press and hold UNLOCK on a currently functioning remote for 4 to 10 seconds.

3. While holding the UNLOCK button during the 4 to 10 second period, press the panic button for one second and release both buttons at the same time. A chime should sound within three seconds to indicate the vehicle has entered programming mode.

4. Press any button on the remote used in step 3. You should hear an audible tone indicating that remote has been re-programmed. This step must be done within 30 seconds of hearing first chime in step 3.

5. Within 30 seconds of completing step 4, press any button on the next remote. Repeat step 5 for all additional remotes including working remotes.

6. Programming is now complete. Turn ignition off and test remotes to ensure proper programming.

Programming Procedure #2

Obtain all remote transmitters for this vehicle.

1. Put key in ignition and turn ignition switch to ON position (as far as you can turn key without cranking engine).

2. Press and hold UNLOCK on a currently functioning remote for 4 to 10 seconds.

3. While holding the UNLOCK button during the 4 to 10 second period, press the panic button for one second and release both buttons at the same time. A chime should sound within three seconds to indicate the vehicle has entered programming mode.

4. Press the LOCK and UNLOCK buttons simultaneously on the same remote used in step 3. then release. You should hear an audible tone indicating that the remote was recognized. Once tone is heard press and release the UNLOCK button on that remote. A chime should sound indicating that the remote has been programmed. This must be done within 30 seconds of step 3.

5. Within 30 seconds of completing step 4, press the LOCK and UNLOCK button on the next remote then release. You should hear an audible tone indicating that the remote was recognized. Once tone is heard press and release the UNLOCK button on that remote. A chime should sound indicating that the remote has been programmed. Repeat step 5 for all additional remotes including working remotes.

6. Programming is now complete. Turn ignition off and test remotes to ensure proper programming.

Programming Procedure #3 (Plymouth Neon)

Obtain all remote transmitters for this vehicle.

1. Identify the programming connector. It will be on the driver’s side under the dash taped to the wiring harness just to the left of the steering column. It will be a single green wire with a black rubber insulator on the end of it.

2. Using a suitable jumper wire jump the programming connector to ground. This means contact the metal in the connector with one end of the wire and contact a non-painted metal surface with the other end of the wire.

3. Insert key into the ignition and turn the ignition switch to the ON position. (Just shy of cranking the engine)

4. Press any button on the first remote. The locks will cycle from Lock to Unlock to show successful programming. Repeat this step for each additional remote to be programmed.

5. Remove jumper wire, turn ignition to OFF and remove key. Test all remotes to ensure they function.

OEM Key Fobs:

We are proud to offer true OEM key fobs direct to you at up to 80% off dealer prices. There is a catch though, so here it goes:

You need to know the only way to get a NEW OEM key fob is to go to a dealer or authorized reseller of OEM parts, and you will pay dealer prices if you do this and spend hundreds of dollars.

Our Products:

The key fob you are going to purchase from us is used or as we like to say “previously loved”. We recycle OEM key fobs and put them through a rigorous refurbishing process so we can guarantee our products and offer them at a reasonable price along with saving the environment. Oh, and we are not robbing you of your hard earned dollars like the stealership does. So if you are good with all of this what are you waiting for? Make your life easier, order a key fob from us and save the world!

4686076 Factory OEM KEY FOB Keyless Entry Remote Alarm Clicker Replacement
