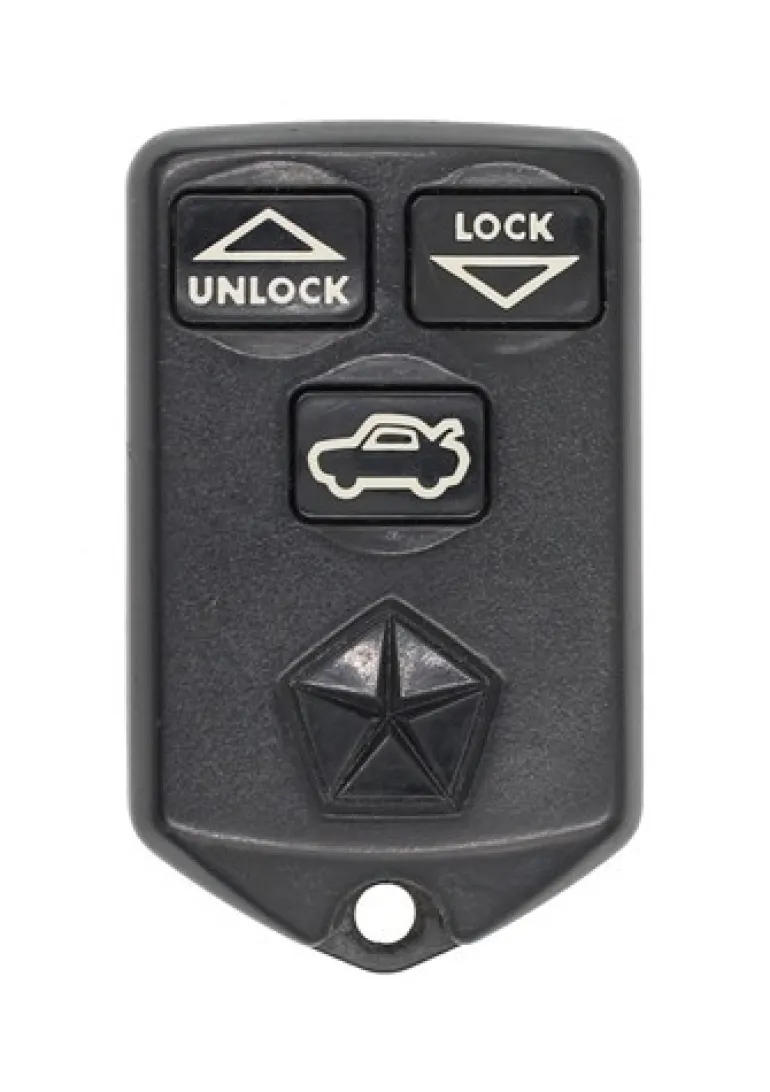

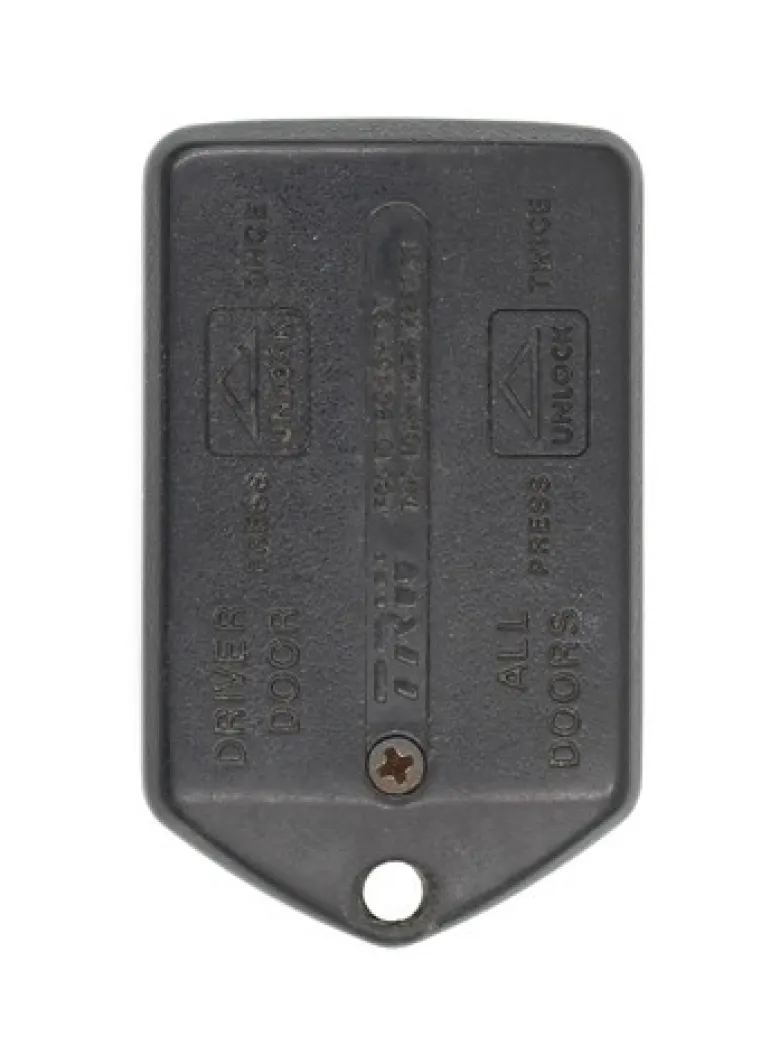

Chrysler GQ43VT3T OEM 3 Button Key Fob
Original price was: 14,00 $.10,99 $Current price is: 10,99 $.
This is a Factory OEM (Original Equipment Manufacturer) Chrysler 3 Button keyless entry remote, aka “key fob”.
Chrysler
- 1995 Chrysler Fifth Avenue
- 1995 Chrysler New Yorker
- 1994 Chrysler Fifth Avenue
- 1994 Chrysler New Yorker
- 1993 Chrysler Fifth Avenue
- 1993 Chrysler New Yorker
94-95 Chrysler Fifth Avenue remotes must be programmed by a professional automotive locksmith or dealership
Obtain all remote transmitters for this vehicle.
1. Identify the programming connector. It will be on the drivers side under the dash taped to the wiring harness just to the left of the steering column. It will be a single green wire with a black rubber insulator on the end of it.
2. Using a suitable jumper wire jump the programming connector to ground. This means contact the metal in the connector with one end of the wire and contact a non-painted metal surface with the other end of the wire.
3. Insert key into the ignition and turn the ignition switch to the ON position. (Just shy of cranking the engine)
4. Press any button on the first remote. The locks will cycle from Lock to Unlock to show successful programming. Repeat this step for each additional remote to be programmed.
5. Remove jumper wire, turn ignition to OFF and remove key. Test all remotes to ensure they function.
Obtain all remote transmitters for this vehicle.
1. Remove the middle vent bezel from the center of the dashboard. Locate the 6 pin traction control connector behind the vent. It will be black in color. Connector should be connected to the vent bezel or the traction control switch, if connected to the traction control switch you must unplug it.
2. Insert key into ignition and turn ignition switch to the ON position.
3. Using a jumper wire or a paper clip bent in the shape of a “U” jump pin 1 to pin 4. Ensure there are metal contacts or pins in cavities 1 and 4. When done properly the doors will automatically lock and then unlock to show that vehicle is in programming mode.
4. Press any button on the first remote to be programmed. Locks will cycle again to indicate vehicle recognized remote. If programming a second remote press any button on second remote to be programmed, locks will cycle again to indicate that second remote was recognized.
5. Programming is now complete, turn ignition to OFF position, remove jumper wire, and test remotes to ensure proper programming.
OEM Key Fobs:
We are proud to offer true OEM key fobs direct to you at up to 80% off dealer prices. There is a catch though, so here it goes: You need to know the only way to get a NEW OEM key fob is to go to a dealer or authorized reseller of OEM parts, and you will pay dealer prices if you do this and spend hundreds of dollars.
Our Products:
The key fob you are going to purchase from us is used or as we like to say “previously loved”. We recycle OEM key fobs and put them through a rigorous refurbishing process so we can guarantee our products and offer them at a reasonable price along with saving the environment. Oh, and we are not robbing you of your hard earned dollars like the stealership does. So if you are good with all of this what are you waiting for? Make your life easier, order a key fob from us and save the world!
