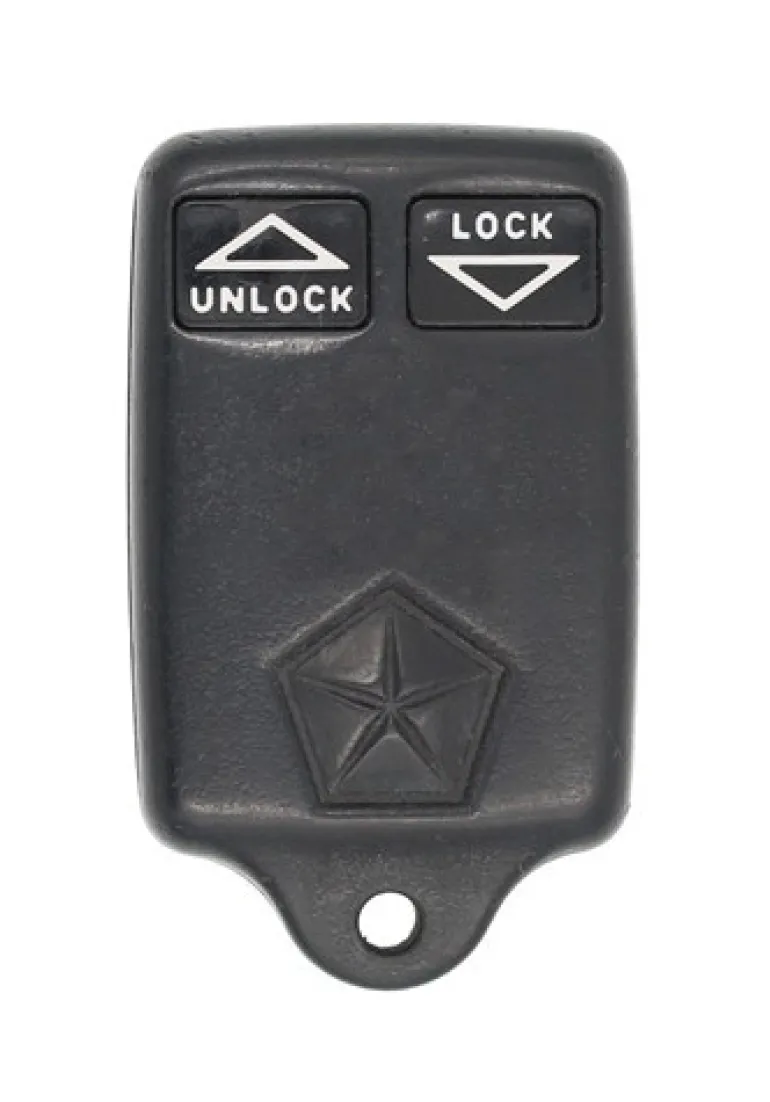

Dodge Ram Van OEM 2 Button Key Fob
15,89 $
This is a Factory OEM (Original Equipment Manufacturer) Dodge Ram Van 2 Button keyless entry remote, aka “key fob”.
1994-1998 Dodge Ram Van
Obtain all remote transmitters for this vehicle.
1. Locate the Data Link Connector (DLC). It will be under the dash on the drivers side. Use the diagram above to identify pins 1 and 4. Notice that the DLC connector is tapered. You can use this to help identify the proper pins. Using a suitable jumper wire jump pin 1 to pin 4. Ensure that there are metal connector ends in the cavities that are referenced in this procedure. Once the jumper wire is installed it needs to remain there throughout this process until instructed to remove.
2. Insert key into the ignition and turn the ignition switch to the ON position. (ON is turning ignition switch as far as you can without cranking the engine)
3. If jumper wire is installed properly, once ignition is ON the door locks will Lock and Unlock once.
4. Now press any button on the first remote to be programmed. To show that the signal from remote is recognized the door locks will cycle again (Lock and Unlock) and the rear window will release if equipped. This step must be repeated for all remaining remotes to be programmed to vehicle.
5. Once all remotes are programmed remove jumper wire and turn ignition to OFF. Test all remotes to ensure proper programming.
Obtain all remote transmitters for this vehicle.
2. Using a suitable jumper wire jump the programming connector to ground. This means contact the metal in the connector with one end of the wire and contact a non-painted metal surface with the other end of the wire.
3. Insert key into the ignition and turn the ignition switch to the ON position. (Just shy of cranking the engine)
4. Press any button on the first remote. The locks will cycle from Lock to Unlock to show successful programming. Repeat this step for each additional remote to be programmed.
5. Remove jumper wire, turn ignition to OFF and remove key. Test all remotes to ensure they function.
Obtain all remote transmitters for this vehicle.
1. Open the glove box and lower down by releasing catch tabs.
2. Insert key into ignition and turn ignition switch to the ON position. (Just shy of cranking the engine)
3. Find the program connector behind the glove box and jump to ground. This means to take a wire and contact the metal in the connector to a non-painted metal surface that is a suitable ground. When done properly the door locks will Lock and then Unlock automatically. The vehicle is now in programming mode.
4. Press any button on the remote. The doors will again Lock and Unlock automatically when the signal has been received from the remote and programmed successfully. Repeat this step for each remote that needs to be programmed to the vehicle.
5. Remove the jumper wire to ground and the programming procedure is now done. Test each remote to ensure it functions.
OEM Key Fobs:
We are proud to offer true OEM key fobs direct to you at up to 80% off dealer prices. There is a catch though, so here it goes: You need to know the only way to get a NEW OEM key fob is to go to a dealer or authorized reseller of OEM parts, and you will pay dealer prices if you do this and spend hundreds of dollars.
Our Products:
The key fob you are going to purchase from us is used or as we like to say “previously loved”. We recycle OEM key fobs and put them through a rigorous refurbishing process so we can guarantee our products and offer them at a reasonable price along with saving the environment. Oh, and we are not robbing you of your hard earned dollars like the stealership does. So if you are good with all of this what are you waiting for? Make your life easier, order a key fob from us and save the world!
