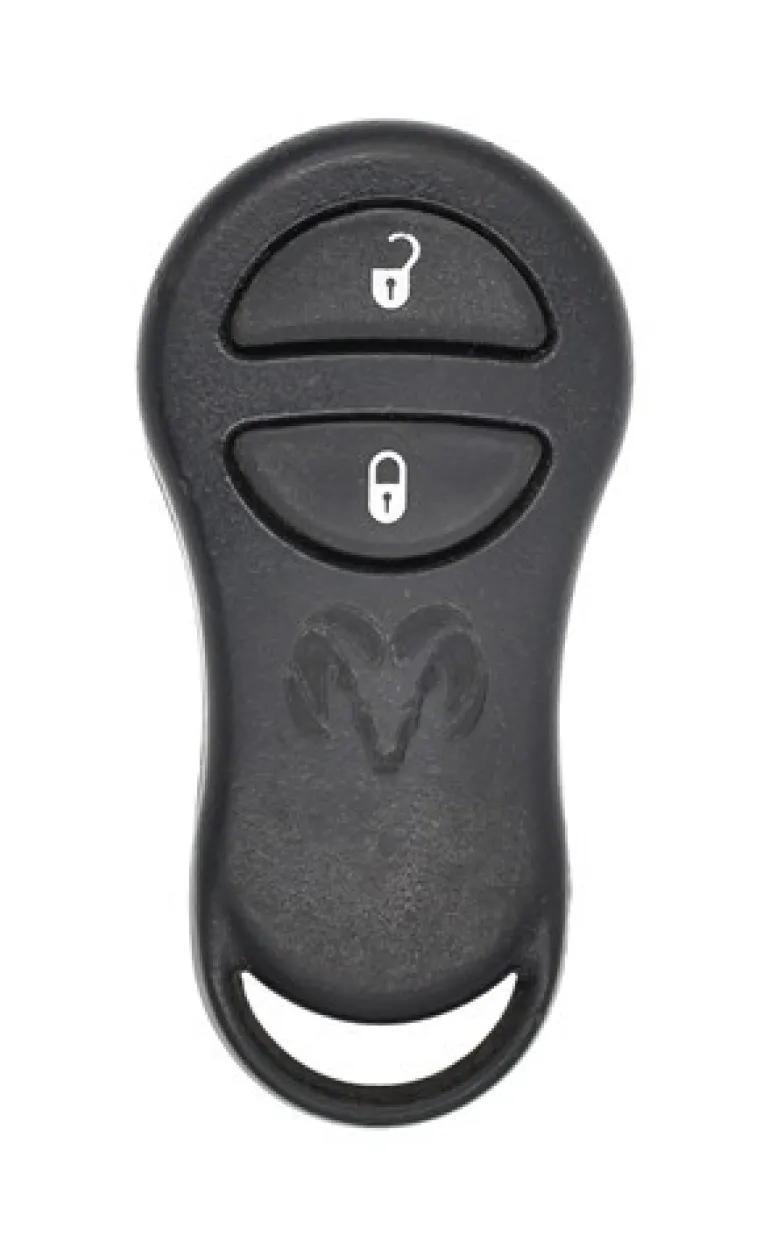

Dodge Ram Van OEM Key Fob 2 Button

This is a Factory OEM (Original Equipment Manufacturer) Dodge Ram Van 2 Button keyless entry remote, aka “key fob”.

1999-2003 Dodge Ram Van

1999 – 2002 Dodge Ram Van:

Obtain all remote transmitters for this vehicle.

1. Locate the Data Link Connector (DLC). It will be under the dash on the drivers side. Use the diagram above to identify pins 1 and 4. Notice that the DLC connector is tapered. You can use this to help identify the proper pins. Using a suitable jumper wire, jump pin 1 to pin 4. Ensure that there are metal connector ends in the cavities that are referenced in this procedure. Once the jumper wire is installed, it needs to remain there throughout this process until instructed to remove.

2. Insert key into the ignition and turn the ignition switch to the ON position. (ON is turning ignition switch as far as you can without cranking the engine.)

3. If jumper wire is installed properly, once ignition is ON the door locks will Lock and Unlock once.

4. Now press any button on the first remote to be programmed. To show that the signal from remote is recognized, the door locks will cycle again (Lock and Unlock) and the rear window will release if equipped. This step must be repeated for all remaining remotes to be programmed to vehicle.

5. Once all remotes are programmed, remove jumper wire and turn ignition to OFF. Test all remotes to ensure proper programming.

2003 Dodge Ram Van:

YOU MUST HAVE A WORKING REMOTE FOR THIS PROCEDURE TO WORK. IF YOU DON’T HAVE A WORKING REMOTE THEN YOU MUST HAVE A REMOTE PROGRAMMED BY A LOCKSMITH USING DIAGNOSTIC EQUIPMENT.

PLEASE READ ENTIRE PROCEDURE BEFORE PERFORMING. SOME VEHICLES MAY USE ONE OF TWO PROCEDURES. IF PROCEDURE 1 DOES NOT WORK THEN PLEASE USE PROCEDURE 2.

Programming Procedure #1

Obtain all remote transmitters for this vehicle.

1. Put key in ignition and turn ignition switch to ON position (as far as you can turn key without cranking engine).

2. Press and hold UNLOCK on a currently functioning remote for 4 to 10 seconds. While holding the UNLOCK button during the 4 to 10 second period, press the panic button for one second and release both buttons at the same time. A chime should sound within three seconds to indicate the vehicle has entered programming mode.

3. Within 30 seconds, press any button on the remote used in step 2. You should hear an audible tone indicating that remote has been re-programmed.

4. Within 30 seconds, press any button on the next remote. Repeat for all additional remotes including previously working remotes.

5. Programming is now complete. Turn ignition off and test remotes to ensure proper programming.

Programming Procedure #2

Obtain all remote transmitters for this vehicle.

1. Put key in ignition and turn ignition switch to ON position (as far as you can turn key without cranking engine).

2. Press and hold UNLOCK on a currently functioning remote for 4 to 10 seconds. While holding the UNLOCK button during the 4 to 10 second period, press the panic button for one second and release both buttons at the same time. A chime should sound within three seconds to indicate the vehicle has entered programming mode.

3. Within 30 seconds, press the LOCK and UNLOCK buttons simultaneously on the same remote used in step 2 then release. You should hear an audible tone indicating that the remote was recognized. Once tone is heard, press and release the UNLOCK button on that remote. A chime should sound indicating that the remote has been programmed.

4. Within 30 seconds, press the LOCK and UNLOCK button on the next remote then release. You should hear an audible tone indicating that the remote was recognized. Once tone is heard press and release the UNLOCK button on that remote. A chime should sound indicating that the remote has been programmed. Repeat for all additional remotes including previously working remotes.

5. Programming is now complete. Turn ignition off and test remotes to ensure proper programming.

OEM Key Fobs:

We are proud to offer true OEM key fobs direct to you at up to 80% off dealer prices. There is a catch though, so here it goes:

You need to know the only way to get a NEW OEM key fob is to go to a dealer or authorized reseller of OEM parts, and you will pay dealer prices if you do this and spend hundreds of dollars.

Our Products:

The key fob you are going to purchase from us is used or as we like to say “previously loved”. We recycle OEM key fobs and put them through a rigorous refurbishing process so we can guarantee our products and offer them at a reasonable price along with saving the environment. Oh, and we are not robbing you of your hard earned dollars like the stealership does. So if you are good with all of this what are you waiting for? Make your life easier, order a key fob from us and save the world!
