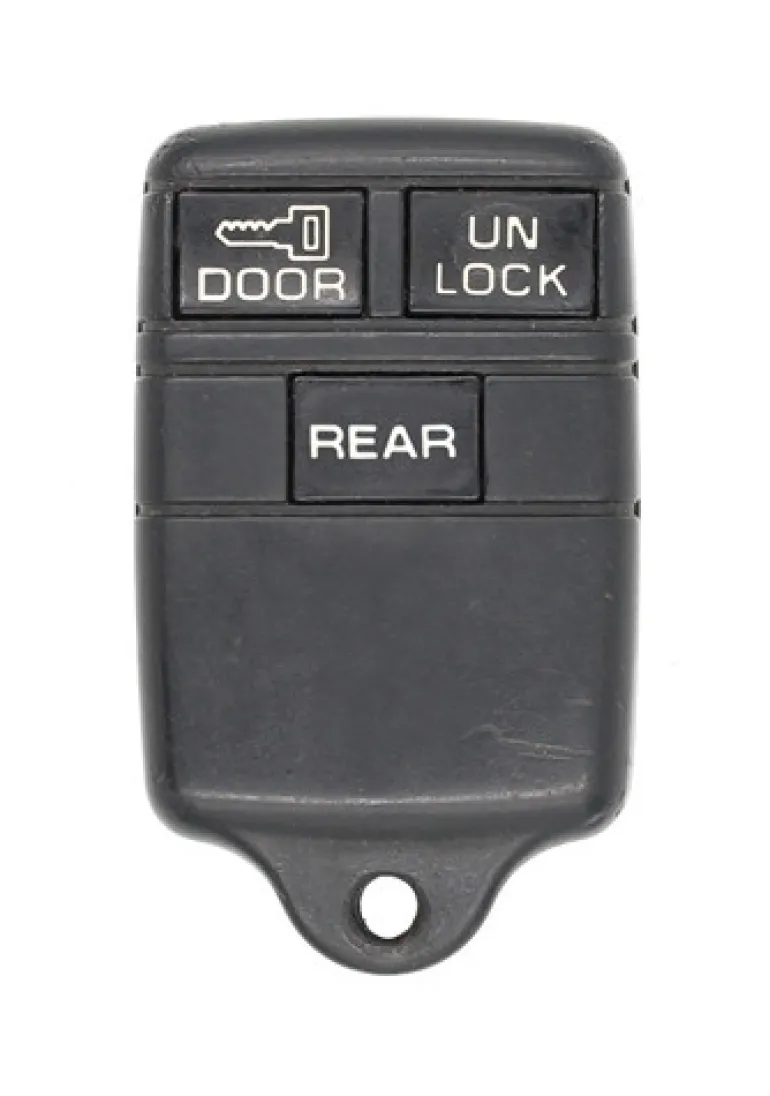

GM 15725423 OEM 3 Button Key Fob

This is a Factory OEM (Original Equipment Manufacturer) GM 3 Button keyless entry remote, aka “key fob”.

GM

• 1996 Chevrolet Astro
• 1996 Chevrolet Blazer
• 1996 Chevrolet S10
• 1996 Chevrolet Silverado
• 1996 Chevrolet Suburban
• 1996 Chevrolet Tahoe
• 1996 GMC Jimmy
• 1996 GMC Safari
• 1996 GMC Suburban
• 1996 GMC Typhoon
• 1996 GMC Yukon
• 1996 Oldsmobile Bravada
• 1995 Chevrolet Astro
• 1995 Chevrolet Blazer
• 1995 Chevrolet S10
• 1995 Chevrolet Silverado
• 1995 Chevrolet Suburban
• 1995 Chevrolet Tahoe
• 1995 GMC Jimmy
• 1995 GMC Safari
• 1995 GMC Suburban
• 1995 GMC Typhoon
• 1995 GMC Yukon
• 1995 Oldsmobile Bravada
• 1994 Chevrolet Blazer
• 1994 Chevrolet S10
• 1994 Chevrolet Silverado
• 1994 Chevrolet Suburban
• 1994 Chevrolet Tahoe
• 1994 GMC Jimmy
• 1994 GMC Suburban
• 1994 GMC Typhoon
• 1994 GMC Yukon
• 1994 Oldsmobile Bravada
• 1993 Chevrolet Blazer
• 1993 Chevrolet S10
• 1993 Chevrolet Silverado
• 1993 Chevrolet Suburban
• 1993 Chevrolet Tahoe
• 1993 GMC Jimmy
• 1993 GMC Suburban
• 1993 GMC Typhoon
• 1993 GMC Yukon
• 1993 Oldsmobile Bravada
• 1992 Chevrolet Blazer
• 1992 GMC Jimmy
• 1992 Oldsmobile Bravada
• 1991 Oldsmobile Bravada

Obtain all remote transmitters for this vehicle.

1. Start with the ignition off and the key out of the ignition.
2. Open the center console and pull out the lower tray. Once removed you should be able to locate the programming connector. It will be a plastic connector with two wires run to it. The programming connector should have two ports. You will have to connect the two terminals with a jumper wire. A paper clip will work as well, ensure that you are contacting both metal pins in the ports. This must remain connected throughout the programming procedure.
3. Once done properly the vehicle will lock and then unlock the doors automatically.
4. Now vehicle is in programming mode. Press any button on first remote to be programmed. When remote programming is accepted the locks will cycle to lock and then unlock automatically.
5. Repeat step 4 for a second remote to be programmed.
6. Programming is complete. Remove jumper wire and test remotes to ensure proper programming.

Obtain all remote transmitters for this vehicle.
1. Locate the Data Link Connector (DLC) underneath the driver’s side dashboard. Please refer to the diagram above to identify the proper pins, the letters will not be
on the connector. They are for reference on diagram only.
2. Connect cavity G with a ground using a fused jumper wire. Your vehicle will respond by locking and unlocking the door locks within 2 seconds.
3. Press any button on first remote to be programmed. Locks will lock and unlock verifying remote was programmed.
4. Press any button on second remote to be programmed if applicable. Locks will lock and unlock to verify remote was programmed.
5. Remove jumper wire and test remote(s).

Obtain all remote transmitters for this vehicle.
1. Locate the Data Link Port. It is located under drivers side dash. You may need to lay on the floor and look up under the dash to see it. Be sure you know which ports are 8 and 4. Notice the port is wider on the top row. If you are looking at the port with the wide row on top and the narrow row on bottom, Port 1 will be in the upper left corner and port 8 in the upper right corner. Be sure there are metal pins inside ports 8 and 4. Please refer to the diagram above to locate the proper pins. The numbers are not on the connector, they are only for reference.
2. Connect pin 8 to pin 4 with a suitable jumper wire. Any short piece of wire will work fine. A paper clip bent in the shape of a U will work perfect. (leave the jumper wire connected throughout the programming procedure). The vehicle will respond by locking and unlocking the doors to indicate vehicle has entered programming mode.
3. Press and hold both the LOCK and UNLOCK buttons together on the first remote to be programmed. After about 15 seconds, the vehicle will respond by locking and unlocking the doors. Release the buttons on the remote.
4. Within one minute, repeat step 3 on all additional remotes including working ones to be programmed.
5. Remove the jumper wire connected to the Data Link Port.

Obtain all remote transmitters for this vehicle.

1. Locate the red two wire programming connector located near the central locking control module. Behind LH lower instrument panel.
2. Inside the red programming connector you will see two pins. Jump the two pins with a section of wire. A paper clip bent in a “U” shape will also work.
3. System should now lock and unlock doors to indicate vehicle has entered programming mode.
4. Press any button on keyless remote once. System should now lock and unlock doors indicating the keyless remote has been programmed.
5. Repeat step 4 to program the other remote.
6. Remove jumper wire from programming connector to exit programming mode.
7. Test Remote(s).

OEM Key Fobs:

We are proud to offer true OEM key fobs direct to you at up to 80% off dealer prices. There is a catch though, so here it goes:

You need to know the only way to get a NEW OEM key fob is to go to a dealer or authorized reseller of OEM parts, and you will pay dealer prices if you do this and spend hundreds of dollars.

Our Products:

The key fob you are going to purchase from us is used or as we like to say “previously loved”. We recycle OEM key fobs and put them through a rigorous refurbishing process so we can guarantee our products and offer them at a reasonable price along with saving the environment. Oh, and we are not robbing you of your hard earned dollars like the stealership does. So if you are good with all of this what are you waiting for? Make your life easier, order a key fob from us and save the world!
