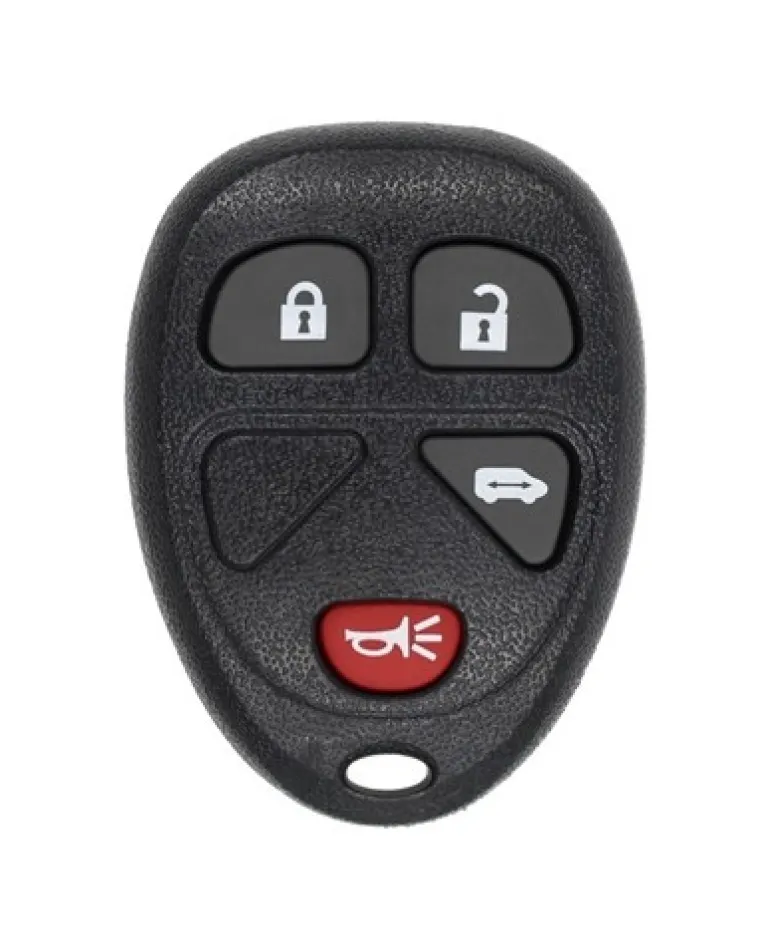

GM 15788021 OEM 4 Button Key Fob

This is a Factory OEM (Original Equipment Manufacturer) GM 4 Button keyless entry remote, aka “key fob”.

OEM electronics in a new aftermarket case.

GM

• 2009 Chevrolet Uplander
• 2009 Pontiac Montana
• 2008 Chevrolet Uplander
• 2008 Pontiac Montana
• 2007 Buick Terraza
• 2007 Chevrolet Uplander
• 2007 Pontiac Montana
• 2007 Saturn Relay
• 2006 Buick Terraza
• 2006 Chevrolet Uplander
• 2006 Pontiac Montana
• 2006 Saturn Relay
• 2005 Buick Terraza
• 2005 Chevrolet Uplander
• 2005 Pontiac Montana
• 2005 Saturn Relay

Obtain all remote transmitters for this vehicle.

1. Start with the key out of the ignition, drivers door is open, all other doors and trunk closed and drivers door is unlocked.

2. Perform these steps within 5 seconds. A. Insert the key into the ignition (Do NOT Turn it) and Pull key out. B. Insert the key into the ignition (Do NOT Turn it) and Pull key out.

3. Perform these steps within 40 seconds. A. Close then open the drivers door. B. Close then open the drivers door. C. Insert the key into the ignition (Do NOT Turn it) and Pull key out.

4. Perform these steps within 40 seconds. A. Close then open the drivers door. B. Close then open the drivers door. C. Insert the key into ignition and leave it in the ignition. D. Close the drivers door. E. Turn the ignition to ON (Do NOT Start or crank engine) then back to OFF. F. Remove the key from the ignition.

5. Within 3 seconds, the power door locks should lock then unlock automatically indicating successful entry into programming mode. Return to step 1 if the door locks do not cycle at this point.

6. Perform these steps within 40 seconds. A. Press the lock and unlock buttons on the remote simultaneously for 1.5 seconds. B. Immediately after letting go of the lock and unlock buttons, Press the lock button by itself and hold for 2 seconds. Within 3 seconds, the door locks should lock and then unlock once indicating successful programming. If the door locks cycle twice, repeat steps A and B in step 6 as the remote was not accepted. C. Repeat steps A and B in step 6 for each new remote.

7. Open drivers door.

Obtain all remote transmitters for this vehicle.

1. Remove key from ignition.

2. Remove the BCM PRGRM fuse from fuse box. You will need to open the passenger door to access the panel. Use the fuse chart to properly identify the BCM PRGRM fuse.

3. Close all doors.

4. Insert key and turn ignition switch to ACC. (ACC is turning the key back toward you).

5. Within 1 second turn the ignition to OFF then back to ACC. (OFF is the position where you can remove your key).

6. Open then close any door.

7. An acoustic sound will be heard after closing the door indicating the vehicle is in programming mode.

8. Hold the LOCK and UNLOCK buttons on the remote for about 15 seconds until two chimes are heard. You may hear a chime after about 5 seconds but you must wait about 15 seconds for a second chime. That remote is now programmed.

9. Repeat step 8 for any additional remotes including working ones.

10. Remove key from ignition and replace BCM PRGRM fuse.

11. Test all remotes.

OEM Key Fobs:

We are proud to offer true OEM key fobs direct to you at up to 80% off dealer prices. There is a catch though, so here it goes: You need to know the only way to get a NEW OEM key fob is to go to a dealer or authorized reseller of OEM parts, and you will pay dealer prices if you do this and spend hundreds of dollars.

Our Products:

The key fob you are going to purchase from us is used or as we like to say “previously loved”. We recycle OEM key fobs and put them through a rigorous refurbishing process so we can guarantee our products and offer them at a reasonable price along with saving the environment. Oh, and we are not robbing you of your hard earned dollars like the stealership does. So if you are good with all of this what are you waiting for? Make your life easier, order a key fob from us and save the world!
