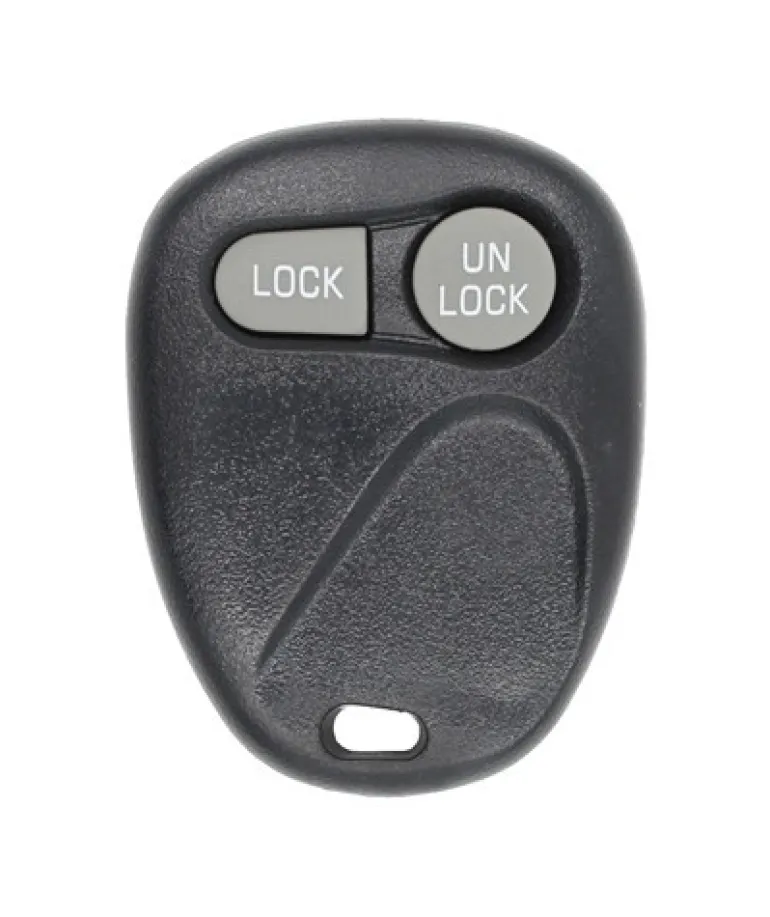

GM 16245100-29 OEM 2 Button Key Fob

This is a Factory OEM (Original Equipment Manufacturer) GM 2 Button keyless entry remote, aka “key fob”.

Genuine OEM electronics in a new aftermarket case.

GM

• 1997-1998 Buick Riviera
• 1997-1998 Buick Skylark
• 1999-2000 Cadillac Escalade
• 1997-1999 Chevrolet Astro
• 1997 Chevrolet Blazer
• 1996-2002 Chevrolet Camaro
• 1996-1999 Chevrolet Cavalier
• 1997-2002 Chevrolet Express
• 2003-2007 Chevrolet Kodiak
• 1996-2001 Chevrolet Lumina
• 1996-1999 Chevrolet Malibu
• 1996-1999 Chevrolet Monte Carlo
• 1997 Chevrolet S10
• 1996-2000 Chevrolet Suburban
• 1996-2000 Chevrolet Tahoe
• 1999-2004 Chevrolet Tracker
• 1997 GMC Jimmy
• 1998-1999 GMC Safari
• 1997-2002 GMC Savana
• 1997-1999 GMC Sierra
• 1997 GMC Sonoma
• 1997-1999 GMC Suburban
• 2003-2007 GMC Topkick
• 1997-2000 GMC Yukon
• 1997-1998 Oldsmobile Achieva
• 1997 Oldsmobile Bravada
• 1997-1999 Oldsmobile Cutlass
• 1997-1998 Pontiac Grand Am
• 1996-2002 Pontiac Firebird
• 1997-1999 Pontiac Sunfire
• 1996-1999 Pontiac Trans Am
• 1996-2000 Saturn SC1
• 1996-2000 Saturn SC2
• 1997-1999 Saturn SL1
• 1997-1999 Saturn SL2
• 1997-1999 Saturn SW1
• 1997-1999 Saturn SW2

NOTE: There are two possible programming procedures for this remote.

*Chevrolet Kodiak, GMC Sierra, and GMC Topkick must be programmed by a professional automotive locksmith or dealership.

Procedure #1

1. Locate the central locking module behind lower instrument panel. Programming connector will be connected to two red wires.
2. Jump the two terminals inside the connector using a jumper wire or a bent paper clip. Doors will cycle from lock to unlock to signal entering of programming mode.
3. Press any button on the remote being programmed, locks will cycle again confirming programming. Repeat this step for any additional remotes.
4. Remove jumper wire or paper clip to exit programming.

Procedure #2

1. Collect all remotes that you wish to program. This procedure will erase all previously programmed remotes. You must program all existing and new remotes that you wish to use on the vehicle at this time.
2. Locate the Data Link Port underneath the driver side dashboard use image above for reference.
3. Jump terminal 8 to terminal 4. Use a jumper wire or bent paper clip to connect the two ports. Locks will cycle to confirm programming.
4. Press and hold lock and unlock button on the remote being programmed. Hold until the locks cycle again signaling successful programming. Repeat this step for any additional remotes.
5. Remove the jumper wire or paperclip to exit programming mode.

OEM Key Fobs:

We are proud to offer true OEM key fobs direct to you at up to 80% off dealer prices. There is a catch though, so here it goes:

You need to know the only way to get a NEW OEM key fob is to go to a dealer or authorized reseller of OEM parts, and you will pay dealer prices if you do this and spend hundreds of dollars.

Our Products:

The key fob you are going to purchase from us is used or as we like to say “previously loved”. We recycle OEM key fobs and put them through a rigorous refurbishing process so we can guarantee our products and offer them at a reasonable price along with saving the environment. Oh, and we are not robbing you of your hard earned dollars like the stealership does. So if you are good with all of this what are you waiting for? Make your life easier, order a key fob from us and save the world!

16245100-29 OEM Key Fob Circuit Board with New Remote Case
