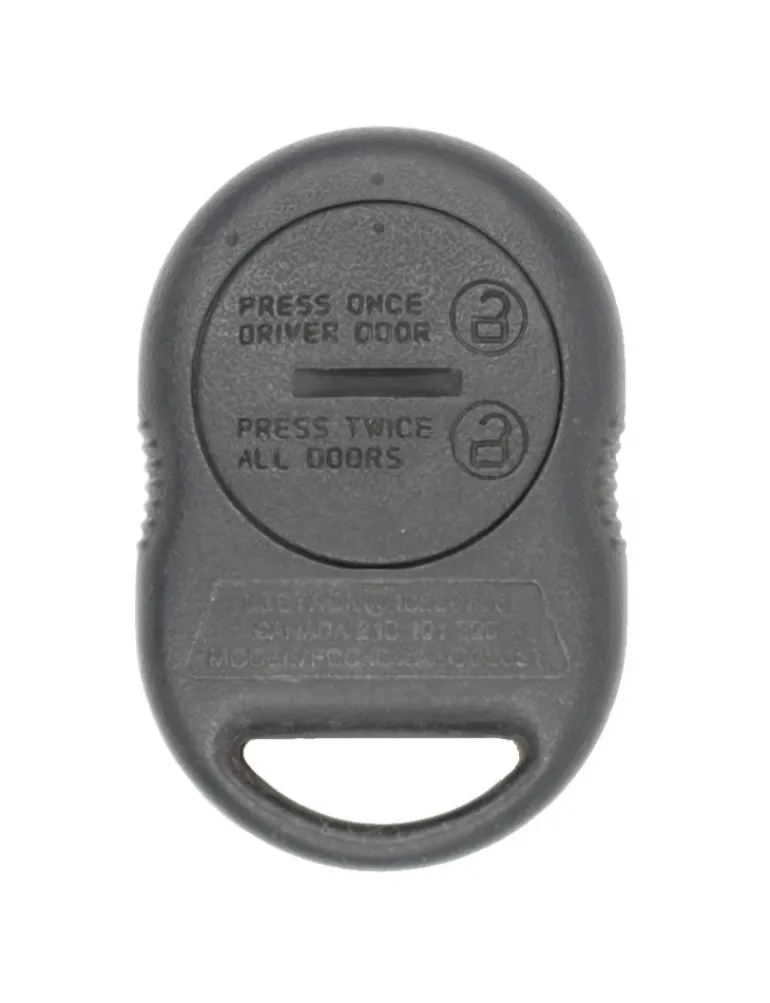

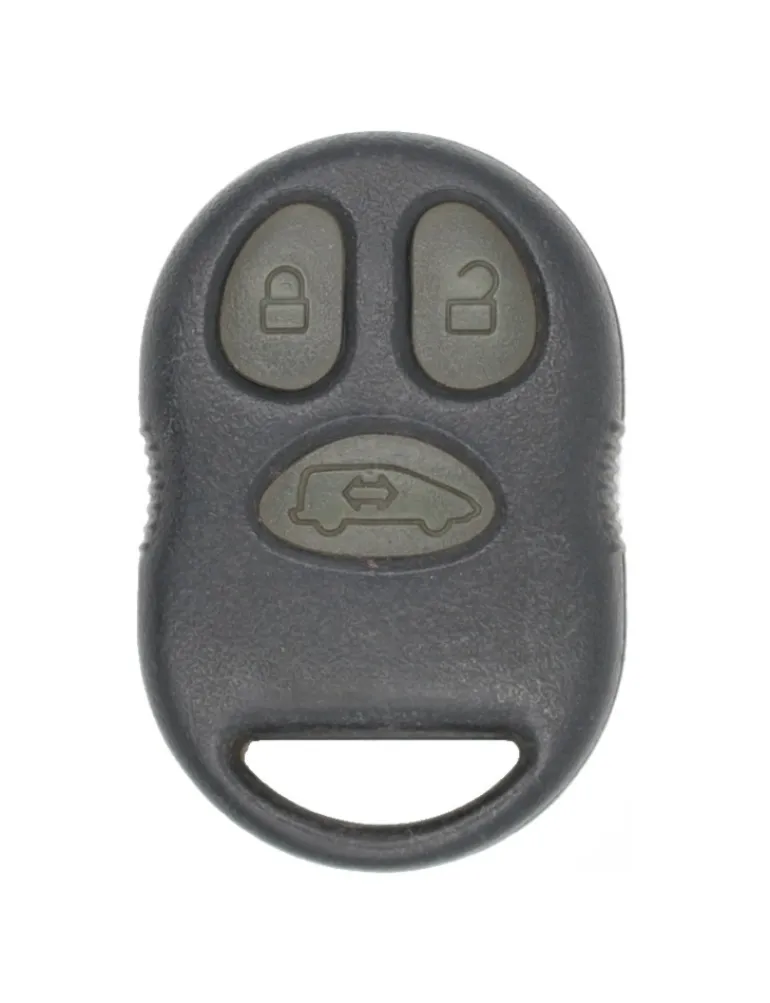

GM ABO0203T OEM 3 Button Key Fob

This is a Factory OEM (Original Equipment Manufacturer) Lectron 3 Button keyless entry remote, aka “key fob”.

Lectron

• 1994-1996 Chevrolet Lumina
• 1994-1996 Oldsmobile Silhouette
• 1994-1996 Pontiac Trans Sport

1994 – 1996 Oldsmobile Silhouette
1994 – 1996 Pontiac Transport

1. Insert key into ignition and turn ignition switch to the ON position (as far as you can turn without cranking engine).

2. Lower glove box and remove the inner compartment. You must access behind the glove box. Once removed locate the receiver box behind glove box and press the “PROGRAM” button on the receiver.

3. Once pressed the vehicle will automatically cycle the door locks to lock and then unlock.

4. Vehicle is now in programming mode.Within ten seconds press the UNLOCK button once on the first remote to be programmed. Vehicle will cycle door locks again to lock then unlock to verify acceptance of the remote.

5. Repeat step 4 to program an additional remote.

6. Programming is now complete. Wait ten seconds after the last programmed remote, turn off ignition, and test remotes to ensure proper programming.

1994 – 1996 Chevrolet Lumina

Note:Existing keyless remotes will be erased with this procedure.
Existing working remotes will have to reprogrammed also.

1. Locate the programming connector wire located in the RH trunk area.
Youmay have to pull back right side trunk trimon trunk wall to locate
thesingle black/white wire.

2.The programming connector wire should have one termial in the plastic
connector on end of black/white wire. Ground the terminal in the connector
to a nearby bolt or trunk latch.
Leave connector wire connected to ground through out procedure.

3. System will now lock and unlock doors automatically to indicate
programming mode has been activated.

4. Press any button on keyless remote.System will respond by locking
and unlocking doors one time to indicate successful programming.

5. Repeat step 4 forto program any additonal keyless remotes including
and existingkeyless remotes. Do not remove ground wire between
programming of keyless remotes.

6. Disconnect programming connector wire from groundto exit programming
mode.

7. Testkeyless remote(s).

OEM Key Fobs:

We are proud to offer true OEM key fobs direct to you at up to 80% off dealer prices. There is a catch though, so here it goes:

You need to know the only way to get a NEW OEM key fob is to go to a dealer or authorized reseller of OEM parts, and you will pay dealer prices if you do this and spend hundreds of dollars.

Our Products:

The key fob you are going to purchase from us is used or as we like to say “previously loved”. We recycle OEM key fobs and put them through a rigorous refurbishing process so we can guarantee our products and offer them at a reasonable price along with saving the environment. Oh, and we are not robbing you of your hard earned dollars like the stealership does. So if you are good with all of this what are you waiting for? Make your life easier, order a key fob from us and save the world!

ABOO203T Factory OEM KEY FOB Keyless Entry Car Remote Alarm Replace
