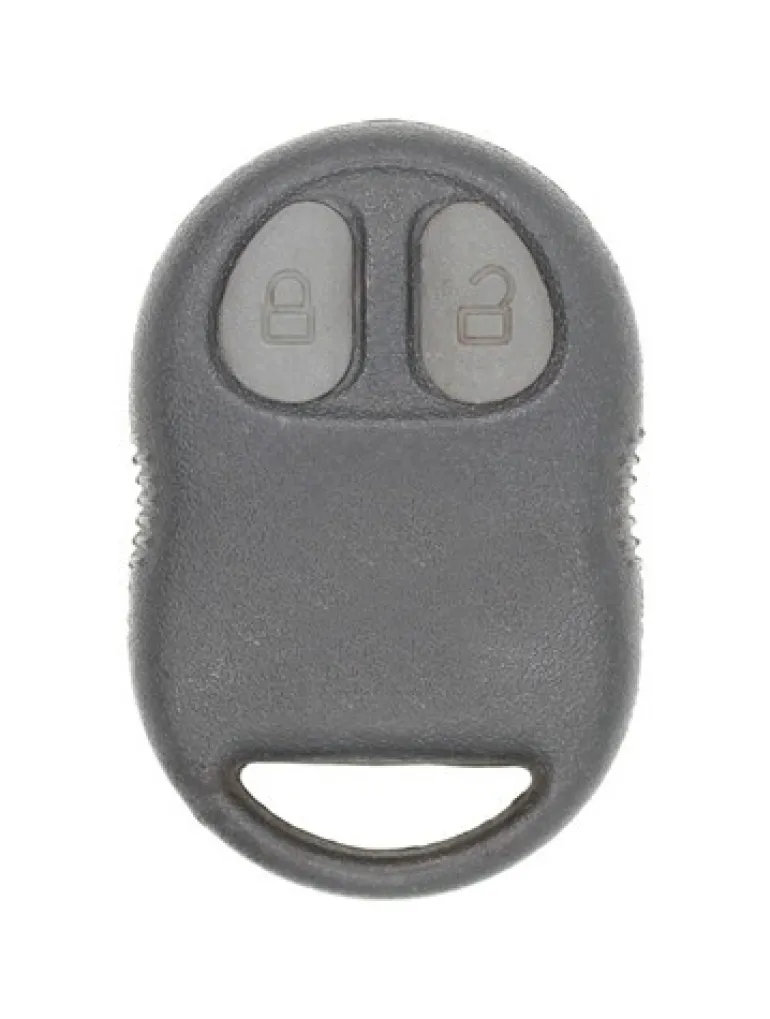

GM CB2V52413T OEM 2 Button Key Fob

This is a Factory OEM (Original Equipment Manufacturer) GM 2 Button keyless entry remote, aka “key fob”.

GM

• 1997 Oldsmobile Silhouette
• 1997 Pontiac Trans Sport
• 1996 Chevrolet Lumina
• 1996 Oldsmobile Silhouette
• 1996 Pontiac Trans Sport
• 1995 Chevrolet Lumina
• 1995 Oldsmobile Silhouette
• 1995 Pontiac Trans Sport
• 1994 Chevrolet Lumina
• 1994 Oldsmobile Silhouette
• 1994 Pontiac Trans Sport
• 1993 Chevrolet Lumina
• 1993 Oldsmobile Silhouette
• 1993 Pontiac Trans Sport
• 1992 Chevrolet Lumina
• 1992 Oldsmobile Silhouette
• 1992 Pontiac Trans Sport
• 1991 Chevrolet Lumina
• 1991 Oldsmobile Silhouette
• 1991 Pontiac Trans Sport
• 1990 Chevrolet Lumina
• 1990 Oldsmobile Silhouette
• 1990 Pontiac Trans Sport

Obtain all remote transmitters for this vehicle.

1. Remove key from ignition.

2. Remove the MALL PGM/BCM PGM fuse from fuse box.

3. Close all doors.

4. Turn ignition switch to ACC. (ACC is turning the key back toward you).

5. Within 1 second turn the ignition to OFF then back to ACC. (OFF is the position where you can remove your key)

6. Open then close the drivers door.

7. An acoustic sound will be heard after closing the door indicating the vehicle is in programming mode.

8. Hold the LOCK and UNLOCK buttons on the remote for about 15 seconds until two chimes are heard.

9. Repeat step 8 for any additional remotes including working ones.

10. Remove key from ignition and replace MALL PGM fuse.

11. Test all remotes.

Obtain all remote transmitters for this vehicle.

1. Remove key from ignition.

2. Remove the BCM PRGRM fuse from fuse box. You will need to open the passenger door to access the panel. Use the fuse chart to properly identify the BCM PRGRM fuse.

3. Close all doors.

4. Insert key and turn ignition switch to ACC. (ACC is turning the key back toward you).

5. Within 1 second turn the ignition to OFF then back to ACC. (OFF is the position where you can remove your key).

6. Open then close any door.

7. An acoustic sound will be heard after closing the door indicating the vehicle is in programming mode.

8. Hold the LOCK and UNLOCK buttons on the remote for about 15 seconds until two chimes are heard. You may hear a chime after about 5 seconds but you must wait about 15 seconds for a second chime. That remote is now programmed.

9. Repeat step 8 for any additional remotes including working ones.

10. Remove key from ignition and replace BCM PRGRM fuse.

11. Test all remotes.

Obtain all remote transmitters for this vehicle.

1. Access programming connector in RH side of trunk (passenger side) you may need to pull back some trim to find or access it. Connector will not be connected to anything and should be one black/white wire. It will have a plug on the end of it with one hole in it or port.

2. Jump programming connector using a suitable jumper wire with ground. Jumping the connector means to use a wire or paperclip to make a connection between the port and ground. Be sure you are making contact with the metal inside the port and touch the other end of the jumper wire to a nearby bolt or unpainted metal surface on the body of the vehicle.

3. System should now lock and unlock doors to indicate successful entry into programming mode.

4. Press any button on remote one time. System should now lock and unlock doors to indicate successful programming of remote.

5. Repeat step 4. for each additional remote including working ones.

6. To exit programming mode remove jumper wire and test all remotes.

Obtain all remote transmitters for this vehicle.

1. Insert key into ignition and turn ignition switch to the ON position (as far as you can turn without cranking engine).

2. Lower glove box and remove the inner compartment. You must access behind the glove box. Once removed locate the receiver box behind glove box and press the “PROGRAM” button on the receiver.

3. Once pressed the vehicle will automatically cycle the door locks to lock and then unlock.

4. Vehicle is now in programming mode. Within ten seconds, press the UNLOCK button once on the first remote to be programmed. Vehicle will cycle door locks again to lock then unlock to verify acceptance of the remote.

5. Repeat step 4 to program an additional remote.

6. Programming is now complete. Wait ten seconds after the last programmed remote, turn off ignition, and test remotes to ensure proper programming.

OEM Key Fobs:

We are proud to offer true OEM key fobs direct to you at up to 80% off dealer prices. There is a catch though, so here it goes:

You need to know the only way to get a NEW OEM key fob is to go to a dealer or authorized reseller of OEM parts, and you will pay dealer prices if you do this and spend hundreds of dollars.

Our Products:

The key fob you are going to purchase from us is used or as we like to say “previously loved”. We recycle OEM key fobs and put them through a rigorous refurbishing process so we can guarantee our products and offer them at a reasonable price along with saving the environment. Oh, and we are not robbing you of your hard earned dollars like the stealership does. So if you are good with all of this what are you waiting for? Make your life easier, order a key fob from us and save the world!
