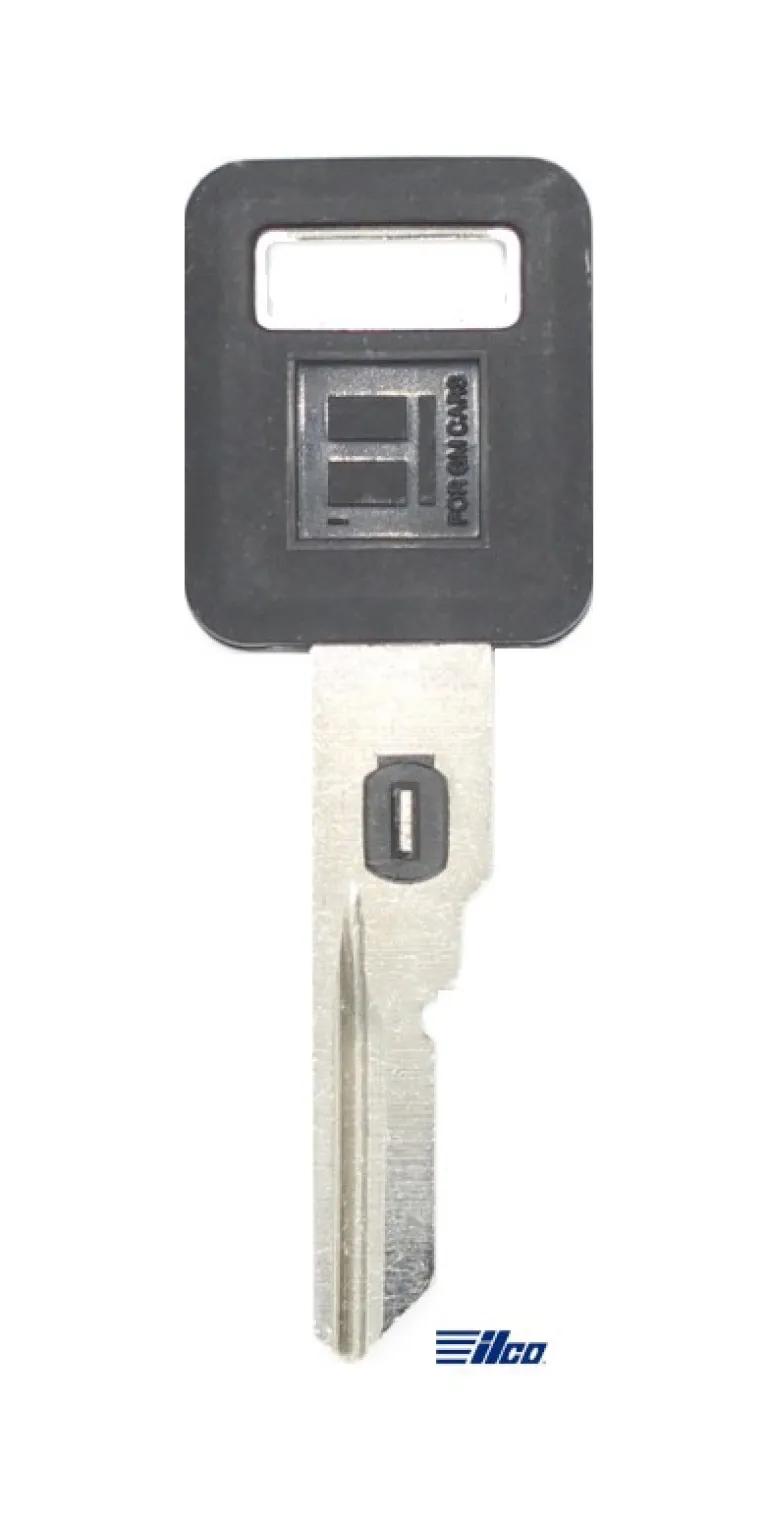

ilco B62-P-2 GM VATS Ignition Key Blank

This is a brand new ilco VATS key blank for GM vehicles.

This VATS key comes in 15 different values. You MUST choose the correct value for the key to work. Cut keys are non-refundable.

• Each pellet or chip in a VATS key has a different OHMS value.
• If you choose the incorrect VATS value, your key will turn in the ignition but will NOT engage the alternator, fuel pump or starter; giving you the symptoms of a dead battery.
• You can use a multimeter with an OHMS (K) setting on 20K to find your keys VATS value. Place one lead from the meter on one side of the wire in the black pellet of your key and the other lead on the opposite side of the same wire. A value will be shown on your multimeter. Use the OHMS readings below to determine which value you need.
• If your OHMS value doesn’t match the charts number exactly, round it to the nearest number.

VATS values measured in (K) OHMS:

1. 0.403
2. 0.523
3. 0.681
4. 0.887
5. 1.130
6. 1.470
7. 1.870
8. 2.370
9. 3.010
10. 3.740
11. 4.750
12. 6.040
13. 7.500
14. 9.530
15. 11.800

This information is a guide only. There may be similar models that use different key blanks. To ensure you buy the correct key blank, we strongly recommend contacting a professional locksmith or dealership before purchasing.
This key can be cut and duplicated using a standard key cutting machine found at most hardware stores, dealerships, and locksmiths.

• 1992-1999 Buick LeSabre
• 1991-1996 Buick Park Avenue
• 1990-1992 Buick Reatta
• 1992-1997 Buick Regal
• 1990-1993 Buick Riviera
• 1994-1996 Buick RoadMaster
• 1990-1993 Cadillac Allante
• 1993-1996 Cadillac Brogham
• 1994-1998 Cadillac Concours
• 1990-1999 Cadillac Deville
• 1990-2003 Cadillac Eldorado
• 1989-1997 Cadillac Seville
• 1990-2002 Chevrolet Camaro/Z28
• 1995-1996 Chevrolet Caprice
• 1986-1997 Chevrolet Corvette
• 1995-1996 Chevrolet Impala
• 1995-2001 Chevrolet Lumina
• 1995-1999 Chevrolet Monte Carlo
• 1994-1997 Oldsmobile Cutlass Supreme
• 1992-1999 Oldsmobile Eighty-Eight
• 1991-1999 Oldsmobile Ninety-Eight
• 1990-1992 Oldsmobile Toronado
• 1992-1999 Pontiac Bonneville
• 1990-2002 Pontiac FireBird
• 1994-1996 Pontiac Grand Prix

Key cutting must be done by a professional automotive locksmith.
