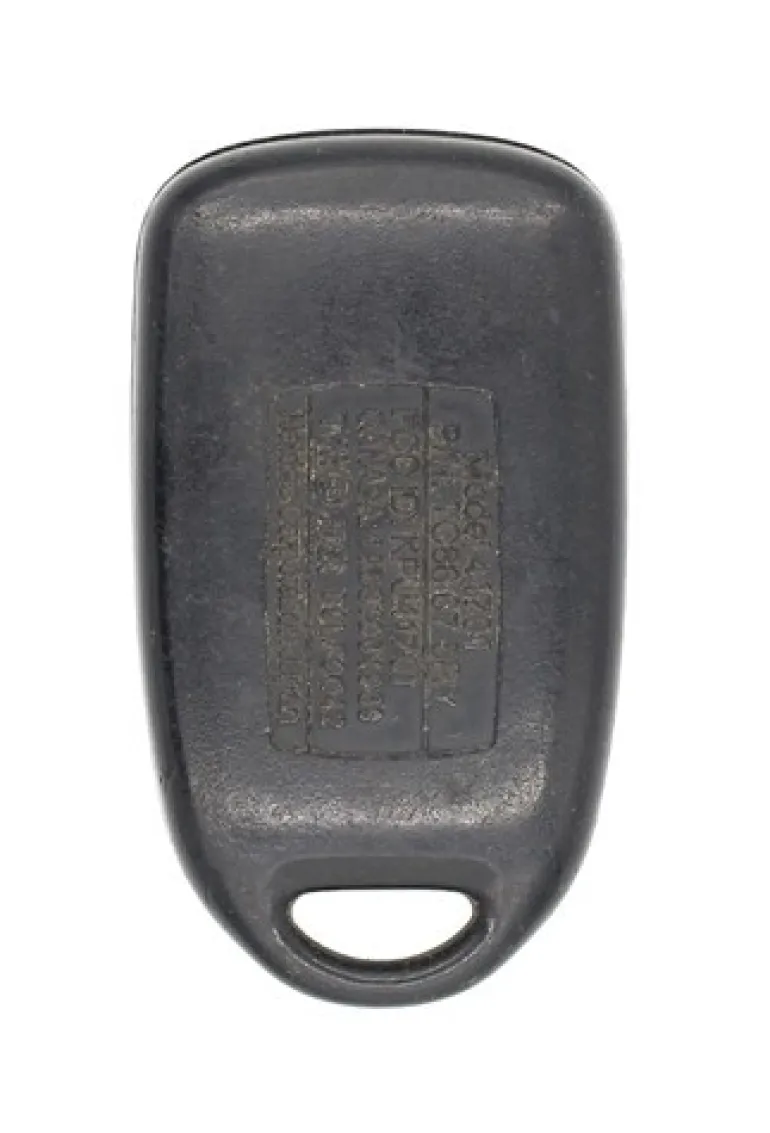

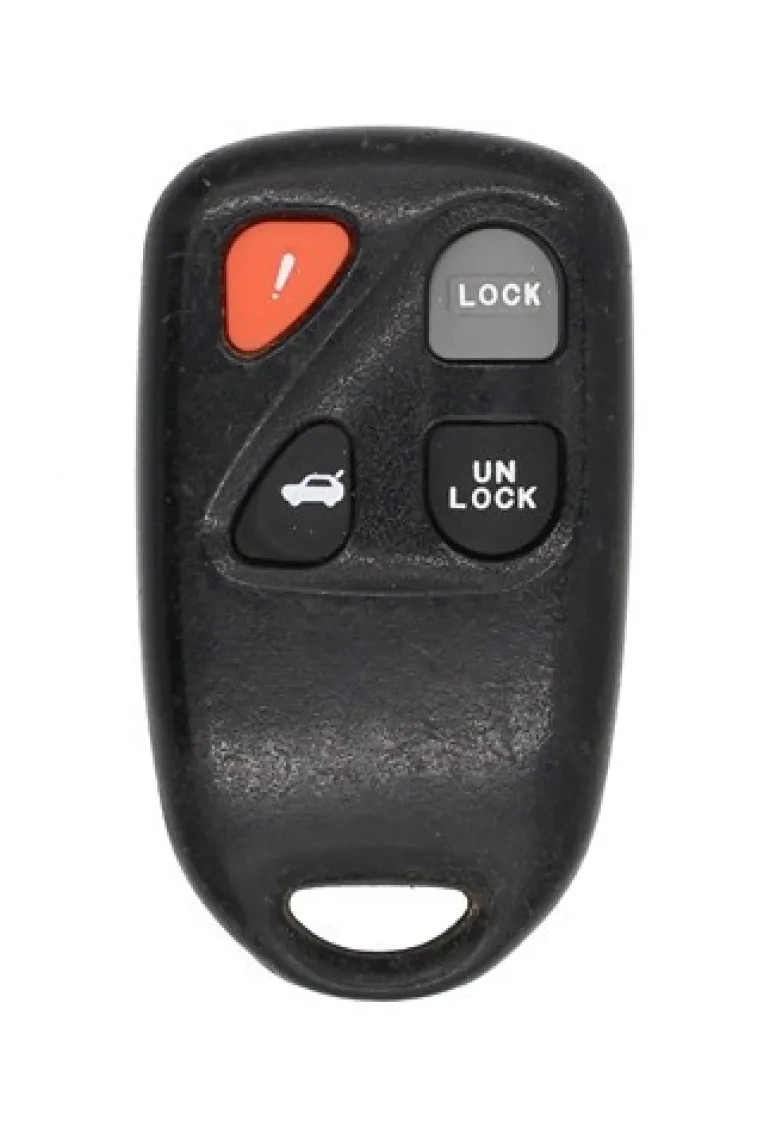

Mazda KPU41701 OEM 4 Button Key Fob

This is a Factory OEM (Original Equipment Manufacturer) Mazda 4 Button keyless entry remote, aka “key fob”.

Mazda

• 2005 Mazda MX-5 Miata
• 2004 Mazda MX-5 Miata
• 2003 Mazda Millenia
• 2003 Mazda MX-5 Miata
• 2002 Mazda Millenia
• 2002 Mazda MX-5 Miata
• 2001 Mazda Millenia
• 2001 Mazda MX-5 Miata

1. Remove key from ignition.

2. Close all doors.

3. Open driver side door and leave open.

4. Perform the following steps within 24 seconds:
a. Insert key in ignition.
b. Turn key to ON and OFF.
c. Repeat step b two more times.
d. Remove key.
e. Push driver door frame button three times (black rubber button located on driver door frame that tell the vehicle whether or not door is closed.)

5. Buzz sound, chime or doors will lock and unlock should be heard at this point signaling that the vehicle is now in programming mode. If not, wait 40 seconds and return to step 4.

6. All transmitters need to be programmed at this time, including the old ones. Push any button on the transmitter two times. A buzz sound, chime or doors locking and unlocking should be heard at this point signaling that the vehicle has accepted the new transmitter code. If there is only one transmitter, repeat this step two more times using the only transmitter. If there are two transmitters, repeat this step two more times using the second transmitter.

7. Push driver door frame button one time. Two buzz sounds, chimes or doors locking and unlocking 2 times should be heard at this point signaling successful programming.

OEM Key Fobs:

We are proud to offer true OEM key fobs direct to you at up to 80% off dealer prices. There is a catch though, so here it goes:

You need to know the only way to get a NEW OEM key fob is to go to a dealer or authorized reseller of OEM parts, and you will pay dealer prices if you do this and spend hundreds of dollars.

Our Products:

The key fob you are going to purchase from us is used or as we like to say “previously loved”. We recycle OEM key fobs and put them through a rigorous refurbishing process so we can guarantee our products and offer them at a reasonable price along with saving the environment. Oh, and we are not robbing you of your hard earned dollars like the stealership does. So if you are good with all of this what are you waiting for? Make your life easier, order a key fob from us and save the world!
