Smart Pro Mercedes Solution Kit

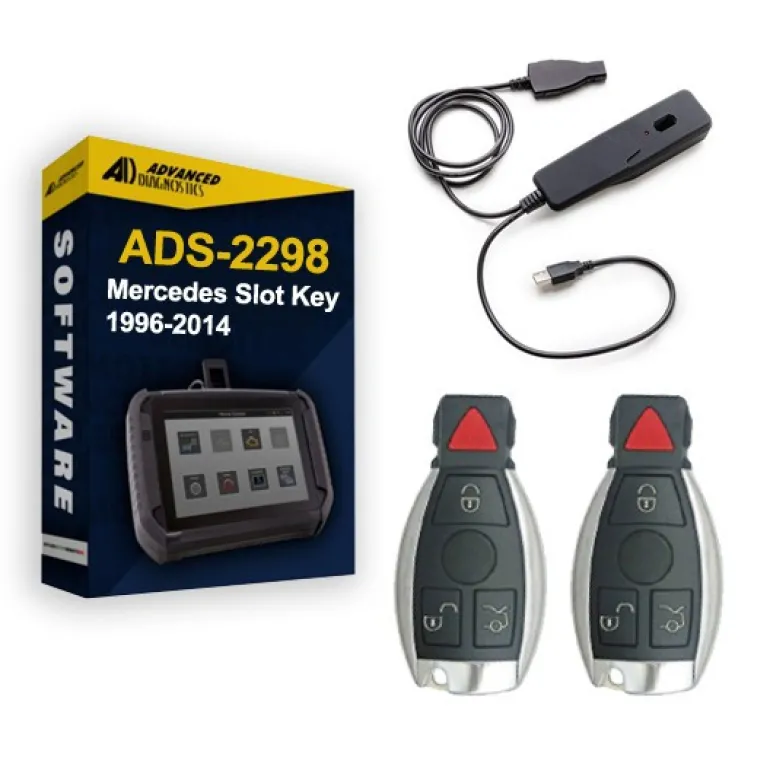

The Smart Pro Mercedes Solution kit includes:
ADC-260 Mercedes Smart Programmer – 1 pcs
ADS-2298 Mercedes Software
POD-BENZ-4B1 Ilco Look-Alike® slot keys – 2 pcs

***Please note: this kit is an add-on programming solution to the Smart Pro programmer.***

Please provide your Smart Pro serial number when placing an order.

Features Of The Smart Pro Mercedes Solution:
Guided procedure: The Smart Pro guides you step-by-step through the programming procedure. You can read data either from the OBD cable, which is always connected to the vehicle when programming or from the immobilizer unit using the key emulator.
Online connection: The Smart Pro must be connected to the internet and an original key is required to complete the procedure. Data is decrypted from the original key and encrypted into the Ilco Look-Alike Remote key via a cloud solution.
Password retrieval at no cost: The password needed to complete the programming procedure is calculated in the background by the system. Its retrieval requires no additional costs.
No tokens needed: The Mercedes® Solution is always available to customers purchasing the Smart Programmer. No additional tokens are required.

What does ADS2298 software do?
The ADS2298 software is designed to program slot keys compatible with Mercedes® models 1996-2014. The software is automatically activated when the Smart Programmer ADC260, required for programming these keys, is connected to the Smart Pro.
A maximum of 8 keys can be programmed with this solution – you don’t have to delete existing keys to add new ones. The software shows the unused slots among the 8 keys available on a Mercedes vehicle to avoid overwriting an existing working key.
With ADS2298 software you will have a choice of standard OBD or emulator key procedure to ensure maximum vehicle coverage.
The security password is calculated in the background by the server – the Smart Pro must be connected to the internet. The 4-button slot key by Ilco POD-BENZ-4B1 is required for this software and offers the same infrared technology used by original keys. This software does not use tokens. Online connection is required.

The software is included for free with the purchase of the ADC260 Mercedes Smart Programmer device. Support for all keys lost situations is coming soon.

About ADC-260 Mercedes Smart Programmer:

-ADC260 connects to the customer’s Smart Pro device via USB cable and comes equipped with an emulator key.
-The key emulator simulates the original key to read data from the car immobilizer.
-It perfectly fits the ignition unit of vehicles supported by this solution.
-The base station features an infrared slot for key reading and writing. It lodges in the Smart Aerial slot at the back of the Smart Pro.
-The device is connected to the Smart Pro via a USB port.

Ilco Look-Alike slot keys (POD-BENZ-4B1):

-Similar design as the original key.
-Ready-to-program with the PCB, infrared technology, and emergency blade HU106 included
-Infrared technology allows you to automatically open and close the windows just like original keys.
-Possibility to reset and rewrite the key in case of mistakes while programming.
-The default key configuration is 315MHz, but a frequency of 433MHz can be set in the markets where allowed.
*Keys also available for sale separately

Supported Vehicles:

2004 – 2012 Mercedes A-Class (Slot key) W169
2012 – 2013 Mercedes A-Class (Slot key) W176
1997 – 2001 Mercedes C-Class (Slot key) W202
2001 – 2007 Mercedes C-Class (Slot key) W203
2007 – 2013 Mercedes C-Class (Slot key) W204
1999 – 2006 Mercedes CL (Slot key) W215
2006 – 2013 Mercedes CL (Slot key) C216
2013 – 2014-10 Mercedes CLA (Slot key) C117
1997 – 2003 Mercedes CLK (Slot key) W208
2003 – 2010 Mercedes CLK (Slot key) W209
2004 – 2010 Mercedes CLS (Slot key) C219
2010 – 2014-08 Mercedes CLS (Slot key) C218
1996 – 2002 Mercedes E-Class (Slot key) W210
2009 – 2009 Mercedes E-Class (Slot key) W212
2010 – 2013 Mercedes E-Class (Slot key) W212
2010 – 2013-05 Mercedes E-Class Coupe (Slot key) C207
2010 – 2013-05 Mercedes E-Class Long Wheel Base (Slot key) V212
2000 – 2007 Mercedes G-Wagon (Slot key) W463
2013 – 2014 Mercedes GLA (Slot key) X156
2005 – 2011 Mercedes ML (Slot key) W164
2011 – 2013 Mercedes ML (Slot key) W166
2005 – 2013 Mercedes R-Class (Slot key) W251
2010 – 2013 Mercedes R-Class (Slot key) W251
1998 – 2005 Mercedes S-Class (Slot key) W220
2005 – 2013 Mercedes S-Class (Slot key) W221
2001 – 2011 Mercedes SL (Slot key) W230
2011 – 2015-03 Mercedes SLK (Slot key) R172
2010 – 2014 Mercedes SLS (Slot key) R197
