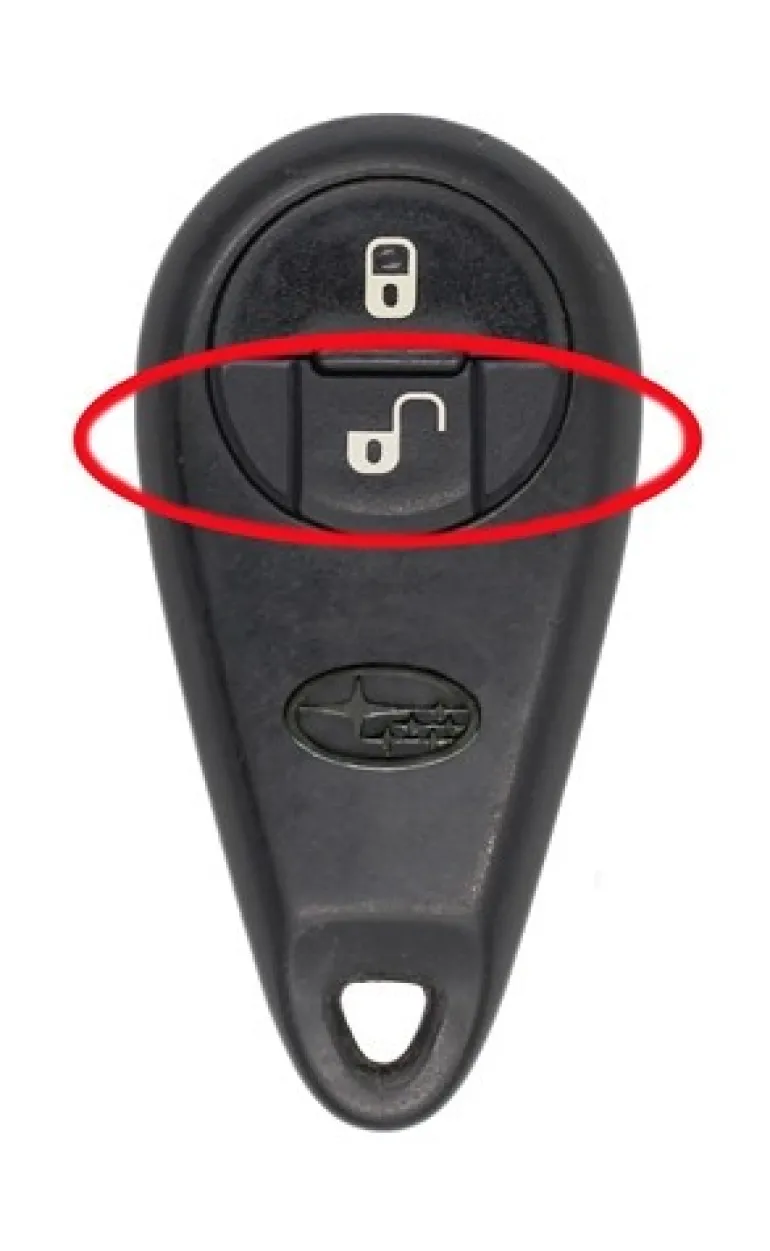

Subaru NHVWB1U711 OEM 2 Button Key Fob -Japan

This is a Factory OEM (Original Equipment Manufacturer) Subaru 4 Button keyless entry remote, aka “key fob”.

Subaru

• 2010 Subaru Forester
• 2010 Subaru Impreza
• 2010 Subaru Legacy
• 2010 Subaru Outback
• 2009 Subaru Forester
• 2009 Subaru Impreza
• 2009 Subaru Legacy
• 2009 Subaru Outback
• 2008 Subaru Forester
• 2008 Subaru Impreza
• 2008 Subaru Legacy
• 2008 Subaru Outback
• 2007 Subaru Forester
• 2007 Subaru Impreza
• 2007 Subaru Legacy
• 2007 Subaru Outback
• 2006 Subaru Baja
• 2006 Subaru Forester
• 2006 Subaru Impreza
• 2006 Subaru Legacy
• 2006 Subaru Outback
• 2005 Subaru Baja
• 2005 Subaru Forester
• 2005 Subaru Impreza
• 2005 Subaru Legacy
• 2005 Subaru Outback
• 2004 Subaru Outback

For remote programming on this vehicle it is necessary to obtain the identification number on the circuit board in the remote. Take a small screwdriver and split the case halves of the remote. Once open you will look on the circuit board and see a sticker with 8 digits on it. If there are two rows of digits you need the one with all numbers and no letters. Now you are ready for programming.

This is somewhat complicated and everything needs to be done in a quick, timely manner or you have to start again (and again). It is much easier to contact your local dealer or automotive locksmith who can program the remotes for you using a special computer.

1. Sit in the vehicle and close the door. Ensure that all doors and rear gate or trunk lid are closed.

2. Open then close the driver’s door.

3. Open then close the driver’s door within 45 seconds.

4. Cycle the ignition switch from LOCK to ON 10 times within 15 seconds. Once done properly you will hear an audible tone accompanied with a buzzing noise. At the same time the interior light will begin to flash. The flashing light and the buzzing sound will continue through the programming process. If you do not get this response then you must return to step 3 and start over.

5. Open and close the door within 15 seconds and the audible tone will be heard again. If you do not get the audible tone at this time you must return to step 3 and start over.

6. While you still hear the tone, press the LOCK button on the door panel the same amount of times as the first digit on the identification number, if the first number is 2 you will press the LOCK button twice, if the number is 8 you will press the LOCK button eight times. Once the first sequence is entered for the first number you will press the UNLOCK button once within five seconds. Repeat these steps for the seven remaining digits of the identification number. Press the UNLOCK button within five seconds after each number entry.

7. Once finished entering all numbers in the identification number you must press the UNLOCK button one more time within 5 seconds and then go through step 6 one more time. You must complete all steps in step 6 one additional time. At completion of the eighth digit you will hear an audible tone for approximately 30 seconds.

8. Repeat steps 4-7 for each additional remote you are programming to the vehicle.

9. Upon completion you can remove key from ignition and test all remotes to ensure that the programming was successful.

OEM Key Fobs:

We are proud to offer true OEM key fobs direct to you at up to 80% off dealer prices. There is a catch though, so here it goes:

You need to know the only way to get a NEW OEM key fob is to go to a dealer or authorized reseller of OEM parts, and you will pay dealer prices if you do this and spend hundreds of dollars.

Our Products:

The key fob you are going to purchase from us is used or as we like to say “previously loved”. We recycle OEM key fobs and put them through a rigorous refurbishing process so we can guarantee our products and offer them at a reasonable price along with saving the environment. Oh, and we are not robbing you of your hard earned dollars like the stealership does. So if you are good with all of this what are you waiting for? Make your life easier, order a key fob from us and save the world!
